No-current brake ‘High Torque’

No-current brake ‘High Torque’

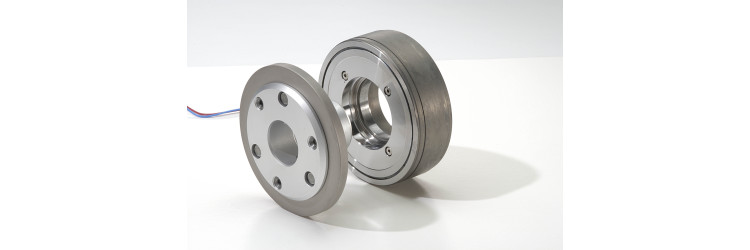

These brakes have the following advantages: - very high static torque (thanks to the rare earth permanent magnets) for a small footprint (very flat brake) - zero angular play at stop - zero residual torque (in all mounting positions) . Often made according to plans and specific indications.
Brakes and clutches
Grayed out functions require you to be logged in to your account
login to my account

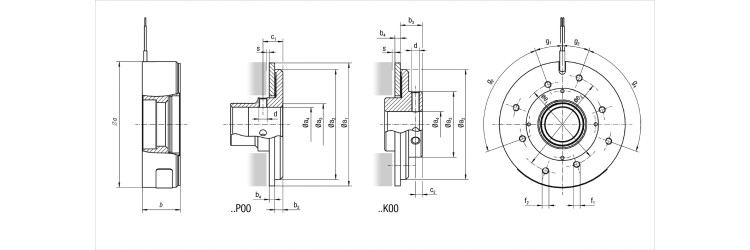

Dimensional plan
Minimum static torque
160 N⋅m
Air gap S
0,3 mm
Dimension f1
M6 mm
Dimension g1
0 mm
Dimension g2
8*45°
Dimension e2
120 mm
Dimension f2
M6 mm
Dimension g3
30 mm
Dimension g4
6*60°
Other characteristics
-Static torque greater than H version thanks to increased polar rays -Optimization of flux and polar surfaces thanks to a patented design -Couple constant in the permissible temperature range -Better
Dimension e1
90 mm
Product range
No-current brake ‘High Torque’
Product range
No-current brake ‘High Torque’
Fastening
By flange
Nominal voltage
24 VDC
IP protection
IP 00
Connection
Free wires (200 mm)
Insulation class
F
