86 011 11E Brakes and clutches
Clutch by energizing
Clutch by energizing

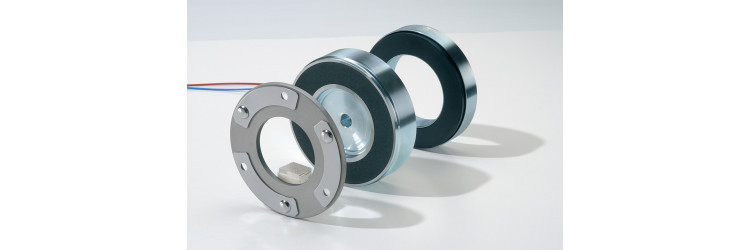

86 011 11E: this clutch by energizing has the following characteristics: -clutching by energizing -coupling without current -angular clearance almost zero when stopped -couple residual uncoupled zero (in all mounting positions) -allows the clutch with relative speed through a mixed friction lining.
Brakes and clutches
- Product range
- Clutch by energizing
- Fastening
- By tapped holes
- Dimension d3
- 80
- Dimension d3
- 80 mm
- Weight without member
- 2
- Weight without member
- 2 kg
- Air gap S0
- 0,3 mm
- Air gap S0
- 0,3
- Dimension d2
- 15*50
- Dimension d2
- 15*50 mm
- Dynamic torque M2
- 21
- Dynamic torque M2
- 21 N⋅m
- Lifetime (indicative values) MJ
- 650
- Lifetime (indicative values) MJ
- 650 MJ
- Dimension b4
- 20
- Dimension b4
- 20 mm
- Moment of inertia of the armature without hub
- 5,7
- Moment of inertia of the armature without hub
- 5,7 kg/cm²
- Dimension b6
- 3
- Dimension b6
- 3 mm
- Dimension d9
- 90
- Dimension d9
- 90 mm
- Moment of inertia of the rotating polar armature
- 20 kg/cm²
- Moment of inertia of the rotating polar armature
- 20
- Dimension b7
- 110
- Dimension b7
- 110 mm
- Dimension d10
- 127
- Dimension d10
- 127 mm
- Dimension d11
- 9
- Dimension d11
- 9 mm
- Dimension d12
- 143,5
- Dimension d12
- 143,5 mm
- Dimension b
- 28
- Dimension b
- 28 mm
- Dimension b2
- 2
- Dimension b2
- 2 mm
- Dimension d
- 110 mm
- Dimension d
- 110
- Dimension L
- 400
- Dimension L
- 400 mm
- Dimension ?
- 4*90°
- Other characteristics
- To ensure its function, the device must be mounted with a mobile armature 86 XXX ... B300 or 86 XXX ... B400 (more details in the catalog for download).
- Dimension d1
- 104
- Dimension d1
- 104 mm
- Dimension M
- 6*M4*6
- Dimension M
- 6*M4*6 mm
- Dimension b3
- 5
- Dimension b3
- 5 mm
- Dimension ?
- 6*60°
- Dimension ?
- 30°
- Product range
- Clutch by energizing
- Maximum speed nmax
- 4800
- Maximum speed nmax
- 4800 min⁻¹
- Permissible friction work per hour P max
- 500
- Permissible friction work per hour P max
- 500 kJ/h
- Permissible friction work per operation W max
- 30
- Permissible friction work per operation W max
- 30 kJ
- Response time for breaking t2
- 40
- Response time for breaking t2
- 40 ms
- Nominal voltage
- 24
- Nominal voltage
- 24 VDC
- Power rating
- 22
- IP protection
- IP 00
- Connection
- Free wires
- Insulation class
- F
