86 021 14E Brakes and clutches
Clutch by energizing
Clutch by energizing

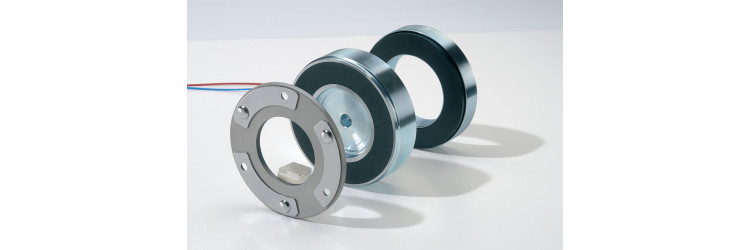

86 021 14E: this clutch by energizing has the following characteristics: -clutching by energizing -coupling without current -angular clearance almost zero when stopped -couple residual uncoupled zero (in all mounting positions) -allows the clutch with relative speed through a mixed friction lining.
Brakes and clutches
- Product range
- Clutch by energizing
- Fastening
- By flange
- Dimension d3
- 110
- Dimension d3
- 110 mm
- Weight without member
- 4
- Weight without member
- 4 kg
- Air gap S0
- 0,3
- Air gap S0
- 0,3 mm
- Dimension d2
- 20*70
- Dimension d2
- 20*70 mm
- Dynamic torque M2
- 60
- Dynamic torque M2
- 60 N⋅m
- Lifetime (indicative values) MJ
- 900 MJ
- Lifetime (indicative values) MJ
- 900
- Dimension b4
- 24
- Dimension b4
- 24 mm
- Moment of inertia of the armature without hub
- 20
- Moment of inertia of the armature without hub
- 20 kg/cm²
- Dimension b6
- 4
- Dimension b6
- 4 mm
- Dimension d9
- 120
- Dimension d9
- 120 mm
- Moment of inertia of the rotating polar armature
- 36
- Moment of inertia of the rotating polar armature
- 36 kg/cm²
- Dimension b7
- 140
- Dimension b7
- 140 mm
- Dimension d10
- 155
- Dimension d10
- 155 mm
- Dimension d11
- 9 mm
- Dimension d11
- 9
- Dimension d12
- 170,5
- Dimension d12
- 170,5 mm
- Dimension b
- 33,5
- Dimension b
- 33,5 mm
- Dimension b2
- 2,5
- Dimension b2
- 2,5 mm
- Dimension d
- 140
- Dimension d
- 140 mm
- Dimension L
- 400
- Dimension L
- 400 mm
- Dimension ?
- 4*90°
- Other characteristics
- To ensure its function, the device must be mounted with a mobile armature 86 XXX ... B200 or 86 XXX ... B300 (more details in the catalog for download).
- Dimension d1
- 134 mm
- Dimension d1
- 134
- Dimension M
- 6*M5*8
- Dimension M
- 6*M5*8 mm
- Dimension b3
- 6,5
- Dimension b3
- 6,5 mm
- Dimension ?
- 6*60°
- Dimension ?
- 30°
- Product range
- Clutch by energizing
- Maximum speed nmax
- 3600
- Maximum speed nmax
- 3600 min⁻¹
- Permissible friction work per hour P max
- 700
- Permissible friction work per hour P max
- 700 kJ/h
- Permissible friction work per operation W max
- 53
- Permissible friction work per operation W max
- 53 kJ
- Response time for breaking t2
- 65
- Response time for breaking t2
- 65 ms
- Nominal voltage
- 24
- Nominal voltage
- 24 VDC
- Power rating
- 35
- IP protection
- IP 00
- Connection
- Free wires
- Insulation class
- F
