86 053 07E Brakes and clutches
Clutch by energizing
86 053 07E

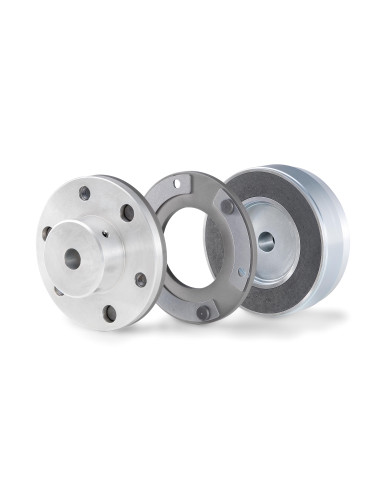

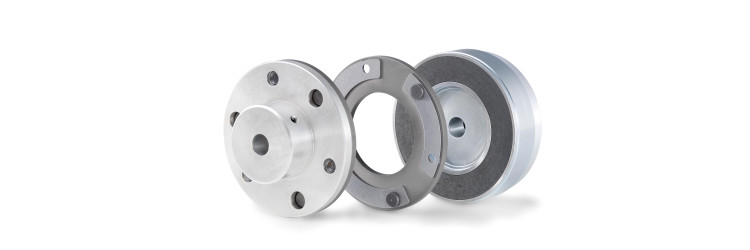

Clutch by energizing
These clutches have the following characteristics: -clutching by energizing -coupling without current -angular clearance almost zero when stopped -couple residual uncoupled zero (in all mounting positions) -allows the clutch with relative speed through a mixed friction lining - self-centering coil using ball bearing.
Brakes and clutches
- Maximum speed nmax
- 8000 min⁻¹
- Permissible friction work per hour P max
- 250 kJ/h
- Permissible friction work per operation W max
- 6 kJ
- Response time for breaking t2
- 25 ms
- Nominal voltage
- 24 VDC
- Power rating
- 12
- IP protection
- IP 00
- Connection
- Free wires
- Insulation class
- F
- Dimension d3
- 5 mm
- Weight without member
- 0,65 kg
- Air gap S0
- 0,2 mm
- Dimension d2
- 10*22 mm
- Dynamic torque M2
- 5 N⋅m
- Lifetime (indicative values) MJ
- 260 MJ
- Moment of inertia of the armature without hub
- 0,65 kg/cm²
- Moment of inertia of the rotating polar armature
- 2,45 kg/cm²
- Dimension b
- 32 mm
- Dimension b2
- 1 mm
- Dimension d
- 70 mm
- Other characteristics
- To ensure its function, the device must be mounted with a mobile armature 86 XXX ... B200 or 86 XXX ... B300 (more details in the catalog for download).
- Dimension d1
- 66,5 mm
- Dimension h
- 82 mm
- Product range
- Clutch by energizing
- Product range
- Clutch by energizing
- Fastening
- Mounted on a movable armature
