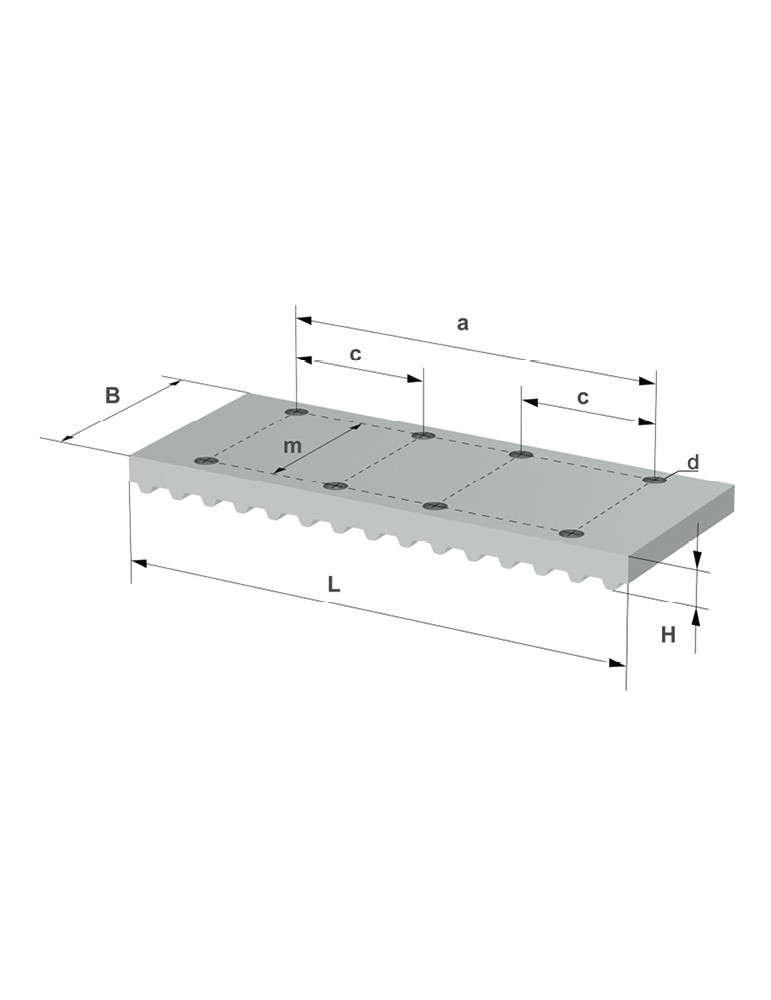

Clamp plate 60 X 160-BATK10-AP
Clamp plate 60 X 160-BATK10-AP
Clamp plate 60 X 160-BATK10-AP

Clamp plate 60 X 160-BATK10-AP


Clamp plate whith bore holes

These clamp plates are used for a linear drive applications. They are supplied without a counter-plate. They are used to secure a carriage to a linear belt and to secure the ends of a belt to a machine frame.
Clamp plates
Download the 3D file
Download PDF
Grayed out functions require you to be logged in to your account
login to my account
Product range
Clamp plate whith bore holes
Without or with hole
With bore holes
Profile / Pitch
BATK10
Material
AL 6060
Belt width
32
Belt width
32 mm
Dimension B
60
Dimension B
60 mm
Dimension L
160
Dimension L
160 mm
Dimension D
6,5
Dimension D
6,5 mm
Dimension M
46
Dimension M
46 mm
Dimension A
110
Dimension A
110 mm
Dimension C
30
Dimension C
30 mm
Dimension H
10
Dimension H
10 mm
Dimension E
40
Dimension E
40 mm
Dimension e1
20
Dimension e1
20 mm
