Clamp plate 75 x 120-T5-SP Clamp plates

Clamp plate whithout bore holes

Accueil  |  Belts, Pulleys, Accessories  |  Accessories  |  Clamp plates  |

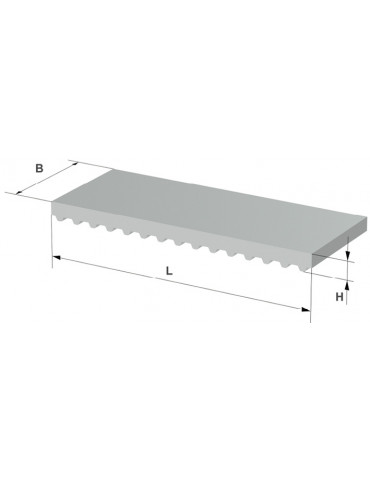

Clamp plate 75 x 120-T5-SP

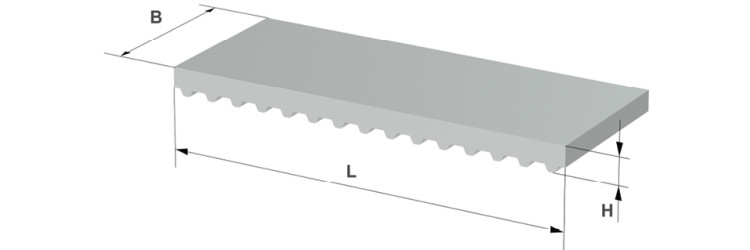

Clamp plate 75 x 120-T5-SP
Clamp plate 75 x 120-T5-SP

Clamp plate 75 x 120-T5-SP


Clamp plate whithout bore holes

These clamp plates are used for a linear drive applications. They are supplied without a counter-plate. They are used to secure a carriage to a linear belt and to secure the ends of a belt to a machine frame.
Clamp plates
Download the 3D file
Download PDF
Grayed out functions require you to be logged in to your account
login to my account
Product range
Clamp plate whithout bore holes
Without or with hole
Without bore holes
Profile / Pitch
T5
Material
AL 6060
Belt width
50
Belt width
50 mm
Dimension B
75
Dimension B
75 mm
Dimension L
120
Dimension L
120 mm
Dimension H
10
Dimension H
10 mm
Product range
Clamp plate whithout bore holes
