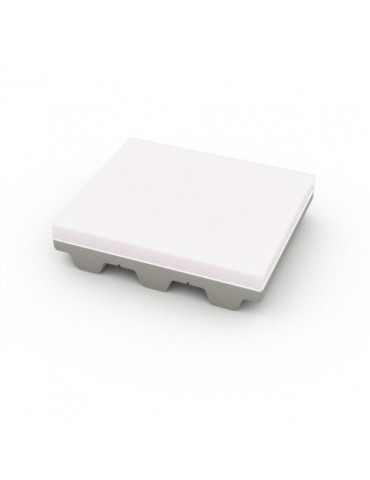

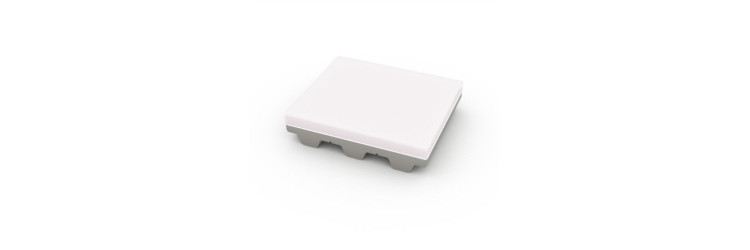

Linaplus FG FDA - 6

Linaplus FG FDA - 6

Linaplus FG FDA - 4

Linaplus FG FDA - 7

Rubber

FDA certified vulcanized natural rubber.

Download PDF

Grayed out functions require you to be logged in to your account

login to my account

Pulley diameter Technical characteristics Mass and dimensions Other

Pulley diameter

Color: White

Low temperature of use: -30

Low temperature of use: -30 °C

High temperature of use: 70

High temperature of use: 70 °C

Tolerances (belt + unground coating): -1/+1,8

Tolerances (belt + unground coating): -0,555555555555556 mm

Minimum pulley diameters: 40

Minimum pulley diameters: 40 mm

Thickness: 5

Thickness: 5 mm

Product range: Rubber

Range of coatings: Rubber

Properties: Resistant to chemical products. Pressure-resistant (contact us).

Machining possibilities: Edges : ground and milled. Surface : ground

Hardness Nine ShA: 38

Hardness Nine ShA: 38 ShA

Tolerances (belt + ground coating): +/-0,2

Tolerances (belt + ground coating): +/-0,2 mm

Type of part: Wet, Alimentaire

Flexibility: MS
