Correx - 7 Coatings

Rubber

Accueil | Belts, Pulleys, Accessories | Accessories | Coatings |

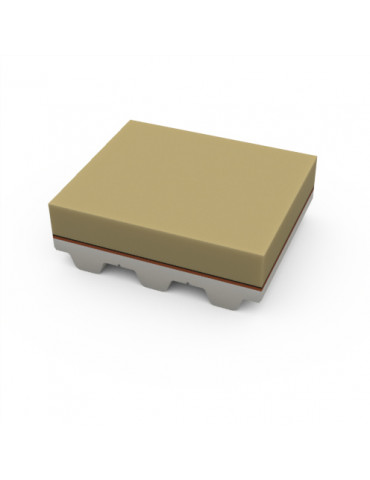

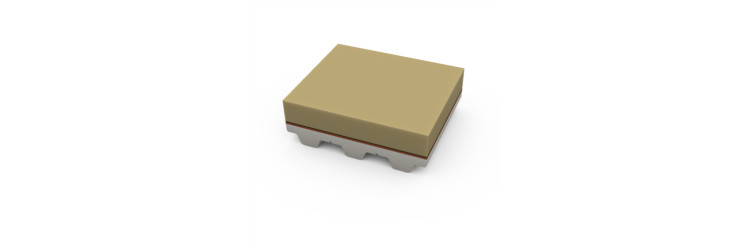

Correx - 7

Correx - 7

Rubber

Parablond rubber very high abrasion and breaking resistance, excellent mechanical and abrasive properties.

Download PDF

Grayed out functions require you to be logged in to your account

login to my account

Pulley diameter Technical characteristics Mass and dimensions Other

Pulley diameter

Color: Light brown

Low temperature of use: -30

Low temperature of use: -30 °C

High temperature of use: 70

High temperature of use: 70 °C

Tolerances (belt + unground coating): +/-0,7

Tolerances (belt + unground coating): +/-0,7 mm

Minimum pulley diameters: 80

Minimum pulley diameters: 80 mm

Thickness: 6

Thickness: 6 mm

Product range: Rubber

Range of coatings: Rubber

Properties: Resistant to simple oils and greases.

Machining possibilities: Edges : ground and milled. Surface : ground

Hardness Nine ShA: 36 ShA

Hardness Nine ShA: 36

Tolerances (belt + ground coating): +/-0,2

Tolerances (belt + ground coating): +/-0,2 mm

Product to be conveyed: Steel, Sheet metal

Flexibility: MS
