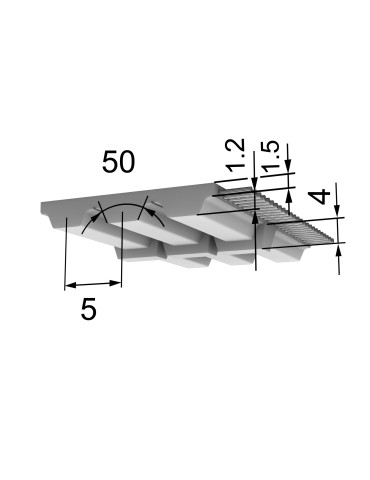

BINDER CUSTOM 50ATK5K6FV Conveying belts
BRECO® Self-guiding belt welding junction
BRECO® Self-guiding belt welding junction
BINDER CUSTOM 50ATK5K6FV: this self-guided belt is welded together and is especially suitable for conveying flat products. In particular, it is available in a wide variety of steps / profiles with a K6 or K13 guide profile and can be upgraded with cleats or cladding.
Conveying belts
- Range
- BINDERcustom
- Product range
- BRECO® Self-guiding belt welding junction
- Application
- Self-guided precision application
- PU Material AISI belt
- Translucent TPU AU1
- Shore hardness AISI PU belt
- 92 ShA
- cour_conv_ct_temp_in2
- 0 to 80 °C
- Profile
- ATK
- Pitch
- 5 mm
- Double toothed belt
- no
- PU Material steel tension member
- White TPU ST1
- Shore hardness steel tension member PU belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 to 80 °C
- Winding
- S + Z
- Guide profile
- K6F
- Width tolerance
- +/- 0.5 mm
- Belt width
- 50 mm
- Weight
- 0,177 kg/m
- Length tolerance
- +/-0.8 mm
- Total thickness tolerance
- -0.1/+0.3 mm
- Thickness tolerance of the tooth
- 0/-0,1 mm
- Product range
- BRECO® Self-guiding belt welding junction
- Type of junction
- Welding junction
- Steel tension member permissible force FN at welding
- 1750 N
- Stainless steel tension member permissible force FN at welding
- 1140 N
- Z min single bending AISI cord
- 25
- Ø min Flexion simple câble AISI
- 60 mm
- Z min alternating bending AISI
- 30
- Ø min Flexion alternée AISI
- 60 mm
- Z min single bending steel cord
- 25
- Ø min Flexion simple câble acier
- 60 mm
- Z min alternating bending steel cord
- 25
- Ø min alternée simple câble acier
- 60 mm
- Z min single bending E cord
- 25
- Ø min Flexion simple câble E
- 60 mm
- Z min alternating bending E cord
- 25
- Ø min alternée simple câble E
- 60 mm
