BINDER ACCESS 32ATK5K6FV Conveying belts
BRECOclassic® Self-guiding belt welding junction
BRECOclassic® Self-guiding belt welding junction
BINDER ACCESS 32ATK5K6FV: this self-guided belt with welded joints is specially designed for simple conveying operations. It is available in a wide variety of pitches/profiles.
Conveying belts
- Range
- BINDERaccess
- Product range
- BRECOclassic® Self-guiding belt welding junction
- Application
- Self-guided simple application
- Width tolerance
- +/- 0.5 mm
- Belt width
- 32 mm
- Weight
- 0,118 kg/m
- Length tolerance
- +/-0.8 mm
- Total thickness tolerance
- -0.1/+0.3 mm
- Thickness tolerance of the tooth
- 0/-0,1 mm

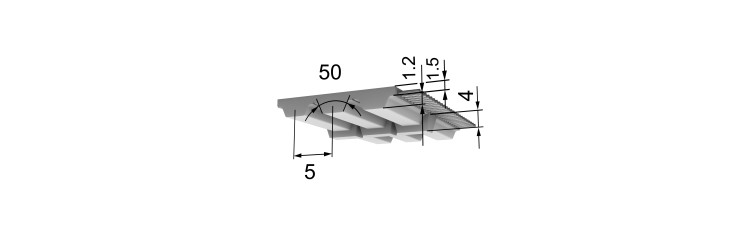

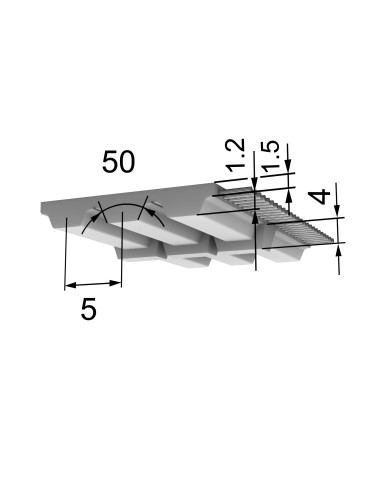

- Profile
- ATK
- Pitch
- 5 mm
- Double toothed belt
- no
- PU Material steel tension member
- White TPU CLA
- Shore hardness steel tension member PU belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 to 80 °C
- Winding
- S + Z
- Guide profile
- K6F
- Product range
- BRECOclassic® Self-guiding belt welding junction
- Type of junction
- Welding junction
- Steel tension member permissible force FN at welding
- 1120 N
- Z min single bending steel cord
- 25
- Ø min Flexion simple câble acier
- 60 mm
- Z min alternating bending steel cord
- 25
- Ø min alternée simple câble acier
- 60 mm
