BINDER CUSTOM 20STD5HF V Conveying belts
CONTI® Synchrodrive flexibility belt welding junction
CONTI® Synchrodrive flexibility belt welding junction

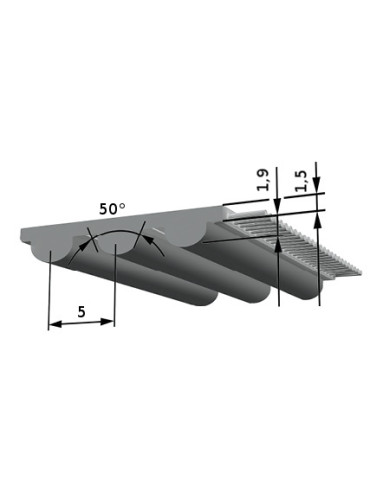

BINDER CUSTOM 20STD5HF V: this welded belt is characterized by its rounded tooth profile. It is suitable for simple transport applications with small wrap diameters. It can therefore operate with low pretension on the frame.
Conveying belts
- Range
- BINDERcustom
- Product range
- CONTI® Synchrodrive flexibility belt welding junction
- Application
- High flexibility application
- PU Material AISI belt
- black
- Shore hardness AISI PU belt
- 92 ShA
- cour_conv_ct_temp_in2
- 0 to 80 °C
- Profile
- STD
- Pitch
- 5 mm
- Double toothed belt
- no
- PU Material steel tension member
- Thermoplastic PU
- Shore hardness steel tension member PU belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 to 80 °C
- Winding
- S + Z
- Width tolerance
- +/- 0.5 mm
- Belt width
- 20 mm
- Weight
- 0,067 kg/m
- Length tolerance
- +/- 1 mm
- Total thickness tolerance
- 0/-0,25 mm
- Product range
- CONTI® Synchrodrive flexibility belt welding junction
- Type of junction
- Welding junction
- Steel tension member permissible force FN at welding
- 300 N
- Z min single bending steel cord
- 12
- Ø min Flexion simple câble acier
- 19 mm
- Z min alternating bending steel cord
- 12
- Ø min alternée simple câble acier
- 30 mm
