BINDER ACCESS 75 T10 V BAS PAZ Conveying belts
BRECObasic® belt welding junction
BRECObasic® belt welding junction
Conveying belts
- Range
- BINDERaccess
- Product range
- BRECObasic® belt welding junction
- Application
- Simple application

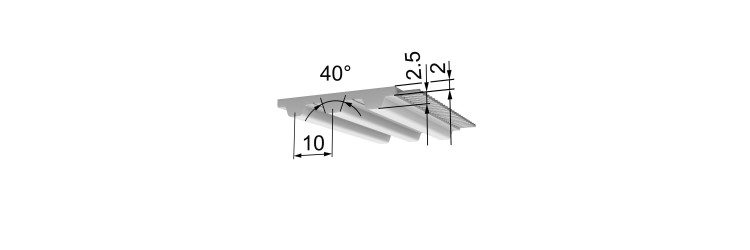

- Profile
- T
- Pitch
- 10 mm
- Double toothed belt
- no
- PU Material steel tension member
- Grey TPU BAS
- Shore hardness steel tension member PU belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 to 80 °C
- Winding
- S + Z
- Width tolerance
- +/- 0.5 mm
- Belt width
- 75 mm
- Weight
- 0,341 kg/m
- Length tolerance
- +/-0.8 mm
- Total thickness tolerance
- -0.1/+0.3 mm
- Thickness tolerance of the tooth
- 0/- 0,1 mm
- Steel tension member permissible force FN at welding
- 3300 N
- Z min single bending steel cord
- 12
- Ø min Flexion simple câble acier
- 60 mm
- Z min alternating bending steel cord
- 20
- Ø min alternée simple câble acier
- 60 mm
- Product range
- BRECObasic® belt welding junction
- Type of junction
- Welding junction
