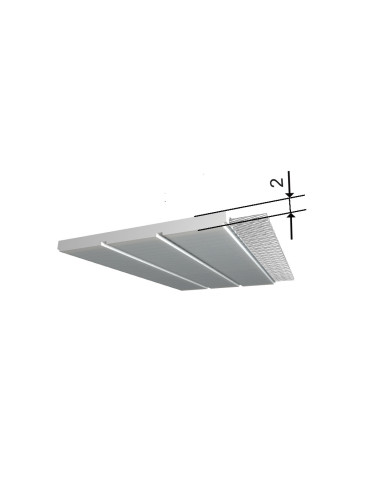

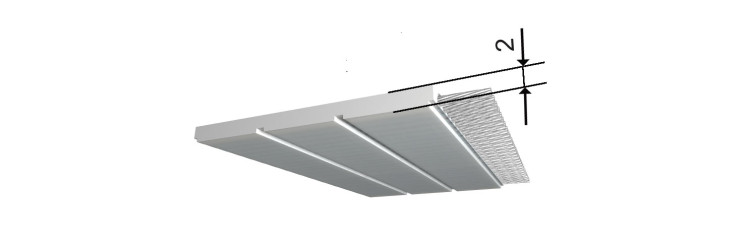

BINDER CUSTOM 32F2 V Conveying belts
BRECO® flat belt welding junction
BRECO® flat belt welding junction
BINDER CUSTOM 32F2 V: this flat belt with welded joints is suitable for conveyor applications that do not require synchronization. In addition, this range of belts can be enhanced with a coating.
Conveying belts
- Range
- BINDERcustom
- Product range
- BRECO® flat belt welding junction
- Application
- Flat band application
- PU Material AISI belt
- Translucent TPU AU1
- Shore hardness AISI PU belt
- 92 ShA
- cour_conv_ct_temp_in2
- 0 to 80 °C
- Profile
- F
- Pitch
- 2 mm
- Double toothed belt
- no
- PU Material steel tension member
- White TPU ST1
- Shore hardness steel tension member PU belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 to 80 °C
- Winding
- S+Z
- Width tolerance
- +/- 0,5 mm
- Belt width
- 32 mm
- Weight
- 0,101 kg/m
- Length tolerance
- +/-0.8 mm
- Total thickness tolerance
- -0.1/+0.3 mm
- Product range
- BRECO® flat belt welding junction
- Type of junction
- Welding junction
- Steel tension member permissible force FN at welding
- 1300 N
- Stainless steel tension member permissible force FN at welding
- 1040 N
- Ø min Flexion simple câble AISI
- 60 mm
- Ø min Flexion alternée AISI
- 130 mm
- Ø min Flexion simple câble acier
- 30 mm
- Ø min alternée simple câble acier
- 60 mm
