BINDER PREMIUM 50 ATN10 Conveying belts
BRECO® ATN system belt welding junction
BRECO® ATN system belt welding junction
BINDER PREMIUM 50 ATN10: this welded belt is a modular design that allows drive assemblies to be created using fastening nuts. The fastening center distances are linked to the belt pitches, which are multiples of 10, 12.7, and 20 mm. It can also be equipped with a mechanical joining system.
Conveying belts
- Range
- BINDERpremium
- Product range
- BRECO® ATN system belt welding junction
- Application
- Transport application
- PU Material AISI belt
- Translucent TPU AU1
- Shore hardness AISI PU belt
- 92 ShA
- cour_conv_ct_temp_in2
- 0 to 80 °C

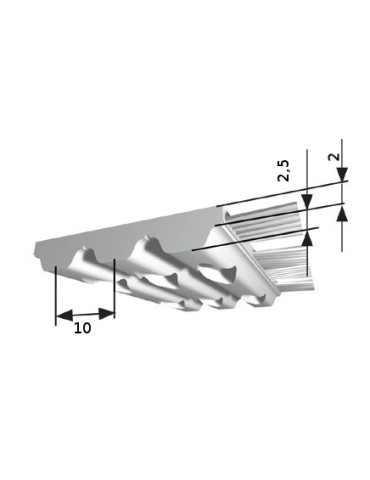

- Profile
- ATN
- Pitch
- 10 mm
- Double toothed belt
- no
- PU Material steel tension member
- White TPU ST1
- Shore hardness steel tension member PU belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 to 80 °C
- Winding
- S+Z
- Belt width
- 50 mm
- Weight
- 0,24 kg/m
- Product range
- BRECO® ATN system belt welding junction
- Type of junction
- Welding junction
- Steel tension member permissible force FN at welding
- 2000 N
- Stainless steel tension member permissible force FN at welding
- 2000 N
- Z min single bending AISI cord
- 25
- Ø min Flexion simple câble AISI
- 80 mm
- Z min single bending steel cord
- 25
- Ø min Flexion simple câble acier
- 80 mm
