BINDER PREMIUM 75 ATN12,7 DC JM Conveying belts
BRECO® mechanical junction ATN system belt
BRECO® mechanical junction ATN system belt
BINDER PREMIUM 75 ATN12,7 DC JM: this ATN mechanical joint belt is a mechanical assembly system that saves time and freedom of action. With a very high resistance, it is therefore available for the entire ATN belt range.
Conveying belts
- Range
- BINDERpremium
- Product range
- BRECO® mechanical junction ATN system belt
- Application
- Transport application
- Profile
- ATN

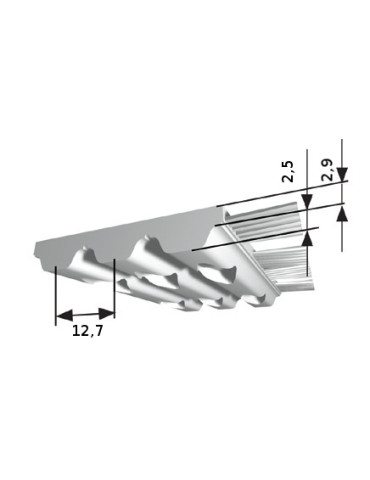

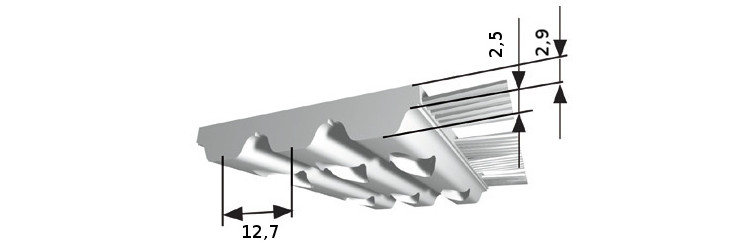

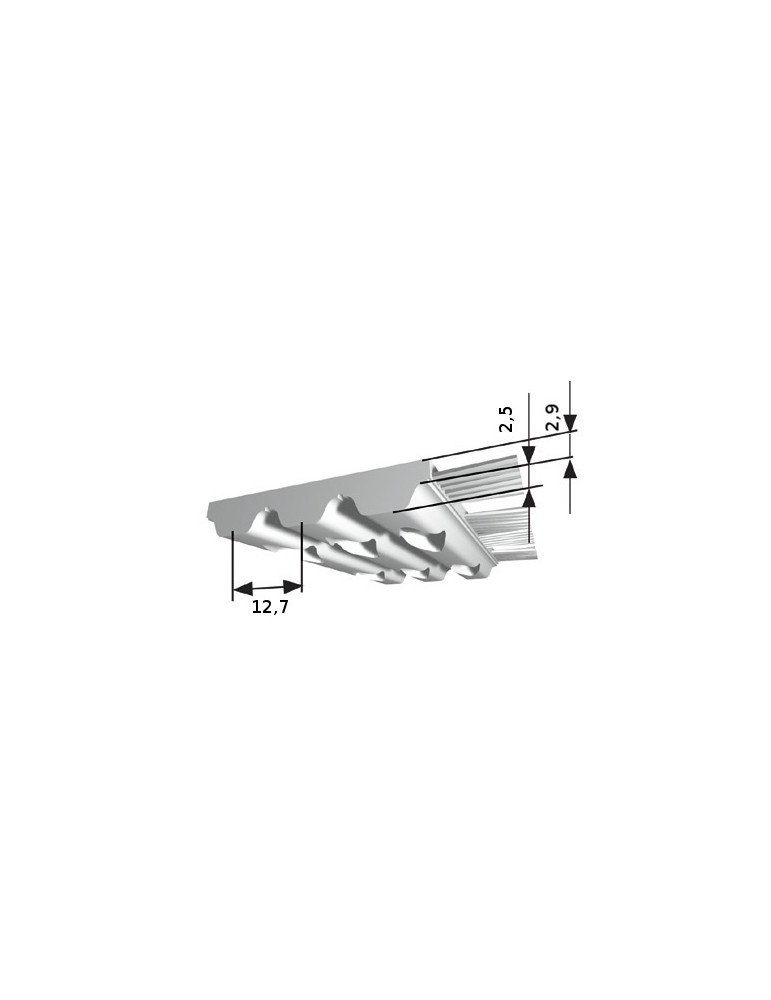

- Pitch
- 12,7 mm
- Double toothed belt
- no
- PU Material steel tension member
- White TPU ST1
- Shore hardness steel tension member PU belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 to 80 °C
- Winding
- S+Z
- Belt width
- 75 mm
- Weight
- 0,423 kg/m
- Product range
- BRECO® mechanical junction ATN system belt
- Type of junction
- Mechanical junction
- Tension member steel permissible stress mechanical fastener
- 1150 N
- Z min single bending steel cord
- 20
- Ø min Flexion simple câble acier
- 80 mm
