BINDER ACCESS 16 T10 BAS PAZ TR1 Conveying belts
BRECObasic® belt welding junction with coating

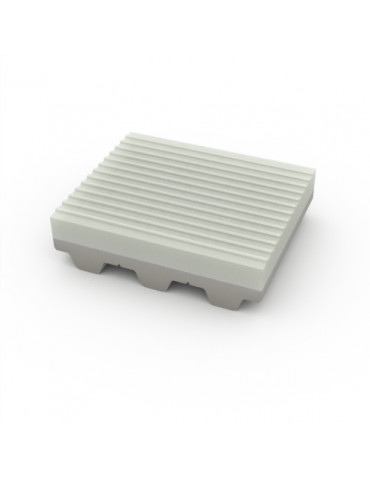

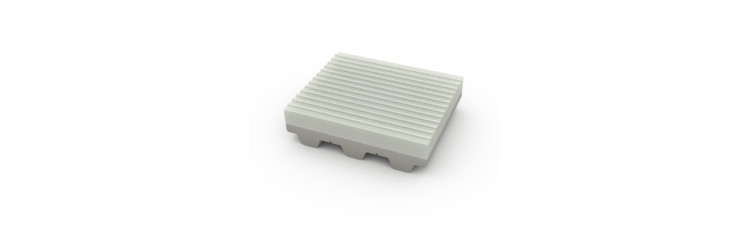

BINDER ACCESS 16 T10 BAS PAZ TR1
BRECObasic® belt welding junction with coating
BINDER ACCESS 16 T10 BAS PAZ TR1: this coated belt has been developed for standard applications in the transport of flat products in areas such as wood and glass processing. It is available with TR1 coating.
Conveying belts
- Range
- BINDERaccess
- Product range
- BRECObasic® belt welding junction with coating
- Application
- Simple transport application
- Width tolerance
- +/- 0.5 mm
- Belt width
- 16 mm
- Length tolerance
- +/-0.8 mm
- Total thickness tolerance
- -0.1/+0.3 mm
- Thickness tolerance of the tooth
- 0/- 0,1 mm
- Belt with coating
- TR1
- Profile
- T
- Pitch
- 10 mm
- Double toothed belt
- no
- PU Material steel tension member
- Grey TPU BAS
- Shore hardness steel tension member PU belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 to 80 °C
- Winding
- S+Z
- Product range
- BRECObasic® belt welding junction with coating
- Type of junction
- Welding junction
- Steel tension member permissible force FN at welding
- 700 N
- Z min single bending steel cord
- 25
- Ø min Flexion simple câble acier
- 80 mm
- Z min alternating bending steel cord
- 25
- Ø min alternée simple câble acier
- 120 mm
