BINDER CUSTOM 100 T10 BAS PAZ PIN V SUPERGRIP BLEU Conveying belts
BRECO® Pinlock junction BRECObasic® belt with coating
Accueil | Belts, Pulleys, Accessories | Belts | Conveying belts |
BINDER CUSTOM 100 T10 BAS PAZ PIN V SUPERGRIP BLEU
BINDER CUSTOM 100 T10 BAS PAZ PIN V SUPERGRIP BLEU
BINDER CUSTOM 100 T10 BAS PAZ PIN V SUPERGRIP BLEU
BRECO® Pinlock junction BRECObasic® belt with coating

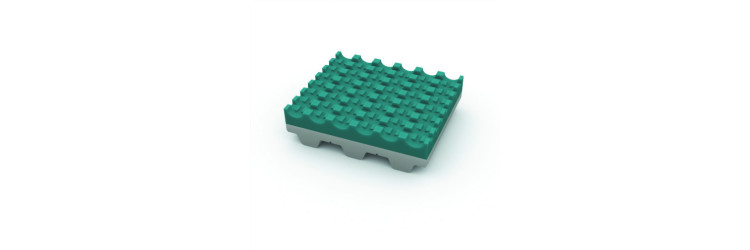

BINDER CUSTOM 100 T10 BAS PAZ PIN V SUPERGRIP BLEU: this coated belt is equipped with a threaded rod assembly system that has been specially designed for quick replacement of conveyor belts for flat products. It is available with PUGelb, Supergrip, AFT2, REDEX, and TR1 coatings.
Conveying belts
- Range
- BINDERcustom
- Product range
- BRECO® Pinlock junction BRECObasic® belt with coating
- Application
- Pinlock transport application
- Width tolerance
- +/- 0.5 mm
- Width tolerance
- +/- 1 mm
- Belt width
- 75 mm
- Belt width
- 100 mm
- Length tolerance
- +/-0.8 mm
- Total thickness tolerance
- -0.1/+0.3 mm
- Thickness tolerance of the tooth
- 0/-0.15 mm
- Thickness tolerance of the tooth
- +/- 0,1 mm
- Belt with coating
- SUPERGRIP BLAU
- Profile
- T
- Profile
- TK
- Pitch
- 10 mm
- Double toothed belt
- no
- PU Material steel tension member
- Grey TPU BAS
- Shore hardness steel tension member PU belt
- 92 ShA
- Winding
- S+Z
- Guide profile
- K13F
- Product range
- BRECO® Pinlock junction BRECObasic® belt with coating
- Type of junction
- Pinlock junction
- Pinlock 10 PIN permissible force FN at the junction
- 1200 N
- Z min single bending steel cord
- 18
- Z min single bending steel cord
- 20
- Ø min Flexion simple câble acier
- 60 mm
- Z min alternating bending steel cord
- 25
- Ø min alternée simple câble acier
- 120 mm
