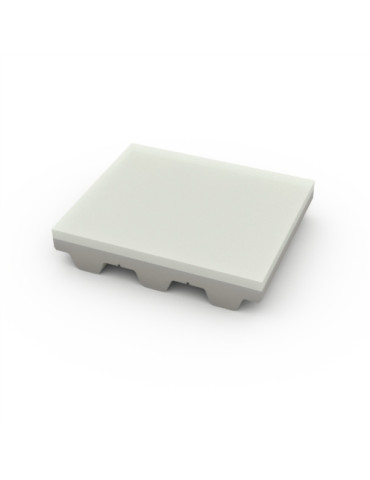

BINDER CUSTOM 50 T10 BAS PAZ PIN V AFT2
BINDER CUSTOM 50 T10 BAS PAZ PIN V AFT2
BINDER CUSTOM 50 T10 BAS PAZ PIN V AFT2
BRECO® Pinlock junction BRECObasic® belt with coating
BINDER CUSTOM 50 T10 BAS PAZ PIN V AFT2: this coated belt is equipped with a threaded rod assembly system that has been specially designed for quick replacement of conveyor belts for flat products. It is available with PUGelb, Supergrip, AFT2, REDEX, and TR1 coatings.
Conveying belts
- Range
- BINDERcustom
- Product range
- BRECO® Pinlock junction BRECObasic® belt with coating
- Application
- Pinlock transport application
- Width tolerance
- +/- 0.5 mm
- Width tolerance
- +/- 1 mm
- Belt width
- 50 mm
- Length tolerance
- +/-0.8 mm
- Total thickness tolerance
- -0.1/+0.3 mm
- Thickness tolerance of the tooth
- 0/-0.15 mm
- Thickness tolerance of the tooth
- +/- 0,1 mm
- Belt with coating
- AFT2
- Profile
- T
- Profile
- TK
- Pitch
- 10 mm
- Double toothed belt
- no
- PU Material steel tension member
- Grey TPU BAS
- Shore hardness steel tension member PU belt
- 92 ShA
- Winding
- S+Z
- Guide profile
- K13F
- Product range
- BRECO® Pinlock junction BRECObasic® belt with coating
- Type of junction
- Pinlock junction
- Pinlock 10 PIN permissible force FN at the junction
- 600 N
- Z min single bending steel cord
- 25
- Ø min Flexion simple câble acier
- 80 mm
- Z min alternating bending steel cord
- 25
- Ø min alternée simple câble acier
- 120 mm
