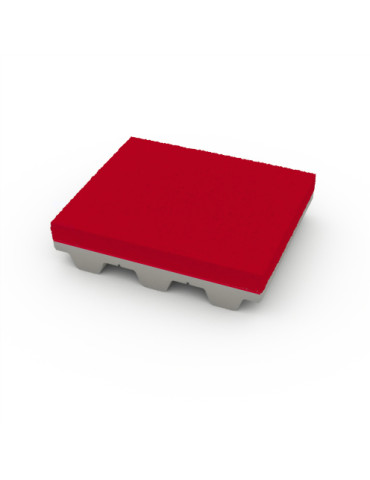

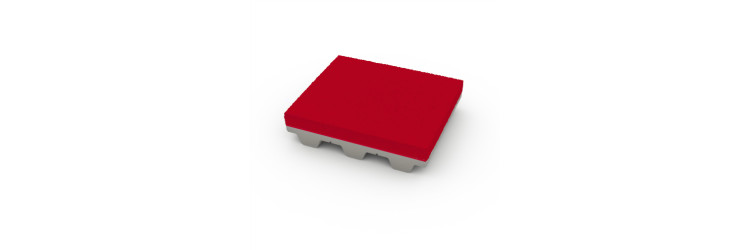

BINDER CUSTOM 75 AT10 BAS PAZ PIN V REDEX 40 2 mm
BINDER CUSTOM 75 AT10 BAS PAZ PIN V REDEX 40 2 mm
BINDER CUSTOM 75 AT10 BAS PAZ PIN V REDEX 40 2 mm
BRECO® Pinlock junction BRECObasic® belt with coating
BINDER CUSTOM 75 AT10 BAS PAZ PIN V REDEX 40 2 mm: this coated belt is equipped with a threaded rod assembly system that has been specially designed for quick replacement of conveyor belts for flat products. It is available with PUGelb, Supergrip, AFT2, REDEX, and TR1 coatings.
Conveying belts
- Range
- BINDERcustom
- Product range
- BRECO® Pinlock junction BRECObasic® belt with coating
- Application
- Pinlock transport application
- Width tolerance
- +/- 0.5 mm
- Belt width
- 75 mm
- Length tolerance
- +/-0.8 mm
- Total thickness tolerance
- -0.1/+0.3 mm
- Thickness tolerance of the tooth
- +/- 0,1 mm
- Belt with coating
- PAZ REDEX 40
- Profile
- AT
- Pitch
- 10 mm
- Double toothed belt
- no
- PU Material steel tension member
- Grey TPU BAS
- Shore hardness steel tension member PU belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 to 80 °C
- Winding
- S + Z
- Product range
- BRECO® Pinlock junction BRECObasic® belt with coating
- Type of junction
- Pinlock junction
- Pinlock 6 PIN permissible force FN at the junction
- 600 N
- Pinlock 10 PIN permissible force FN at the junction
- 1200 N
- Z min single bending steel cord
- 18
- Ø min Flexion simple câble acier
- 50 mm
- Z min alternating bending steel cord
- 25
- Ø min alternée simple câble acier
- 120 mm
