BINDER CUSTOM 75 T10 BAS PAZ PIN V AFT2
BINDER CUSTOM 75 T10 BAS PAZ PIN V AFT2
BINDER CUSTOM 75 T10 BAS PAZ PIN V AFT2
BRECO® Pinlock junction BRECObasic® belt with coating

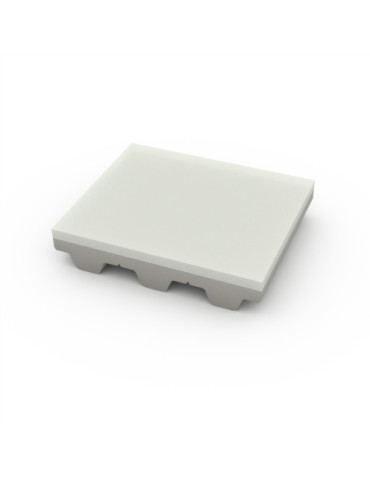

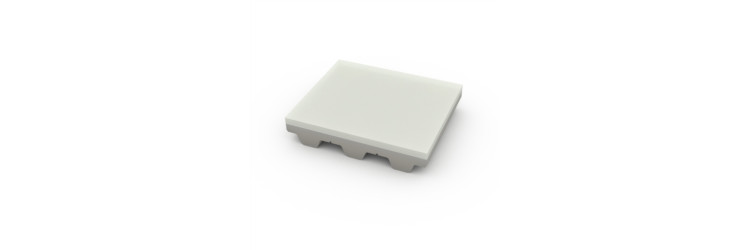

BINDER CUSTOM 75 T10 BAS PAZ PIN V AFT2: this coated belt is equipped with a threaded rod assembly system that has been specially designed for quick replacement of conveyor belts for flat products. It is available with PUGelb, Supergrip, AFT2, REDEX, and TR1 coatings.
Conveying belts
- Range
- BINDERcustom
- Product range
- BRECO® Pinlock junction BRECObasic® belt with coating
- Application
- Pinlock transport application
- Belt with coating
- AFT2
- Profile
- T
- Pitch
- 10 mm
- Double toothed belt
- no
- PU Material steel tension member
- Grey TPU BAS
- Shore hardness steel tension member PU belt
- 92 ShA
- Winding
- S+Z
- Width tolerance
- +/- 0.5 mm
- Belt width
- 75 mm
- Length tolerance
- +/-0.8 mm
- Total thickness tolerance
- -0.1/+0.3 mm
- Thickness tolerance of the tooth
- +/- 0,1 mm
- Pinlock 10 PIN permissible force FN at the junction
- 900 N
- Product range
- BRECO® Pinlock junction BRECObasic® belt with coating
- Type of junction
- Pinlock junction
- Z min single bending steel cord
- 25
- Ø min Flexion simple câble acier
- 80 mm
- Z min alternating bending steel cord
- 25
- Ø min alternée simple câble acier
- 120 mm
