BINDER CUSTOM 25 AT10 BAS PAZ PIN V SUPERGRIP BLEU BAS Conveying belts
BRECO® Pinlock junction BRECObasic® belt with coating
Accueil | Belts, Pulleys, Accessories | Belts | Conveying belts |
BINDER CUSTOM 25 AT10 BAS PAZ PIN V SUPERGRIP BLEU BAS
BINDER CUSTOM 25 AT10 BAS PAZ PIN V SUPERGRIP BLEU BAS
BINDER CUSTOM 25 AT10 BAS PAZ PIN V SUPERGRIP BLEU BAS
BRECO® Pinlock junction BRECObasic® belt with coating

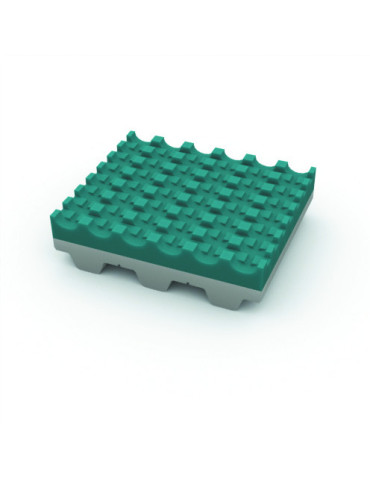

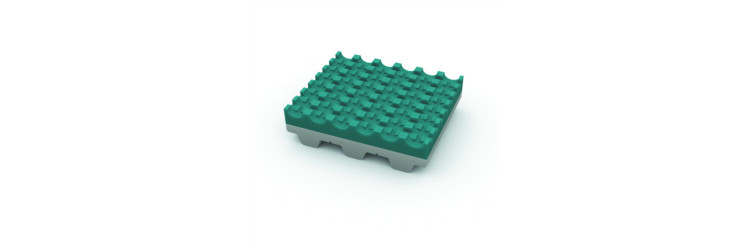

BINDER CUSTOM 25 AT10 BAS PAZ PIN V SUPERGRIP BLEU BAS: this coated belt is equipped with a threaded rod assembly system that has been specially designed for quick replacement of conveyor belts for flat products. It is available with PUGelb, Supergrip, AFT2, REDEX, and TR1 coatings.
Conveying belts
- Range
- BINDERcustom
- Product range
- BRECO® Pinlock junction BRECObasic® belt with coating
- Application
- Pinlock transport application
- Width tolerance
- +/- 0.5 mm
- Belt width
- 25 mm
- Length tolerance
- +/-0.8 mm
- Total thickness tolerance
- -0.1/+0.3 mm
- Thickness tolerance of the tooth
- +/- 0,1 mm
- Belt with coating
- PAZ SUPERGRIP BLAU
- Profile
- AT
- Pitch
- 10 mm
- Double toothed belt
- no
- PU Material steel tension member
- Grey TPU BAS
- Shore hardness steel tension member PU belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 to 80 °C
- Winding
- S+Z
- Product range
- BRECO® Pinlock junction BRECObasic® belt with coating
- Type of junction
- Pinlock junction
- Pinlock 6 PIN permissible force FN at the junction
- 200 N
- Pinlock 10 PIN permissible force FN at the junction
- 400 N
- Z min single bending steel cord
- 18
- Ø min Flexion simple câble acier
- 60 mm
- Z min alternating bending steel cord
- 25
- Ø min alternée simple câble acier
- 120 mm
