FR-40-80-Q-DL-800-40 Conveyors

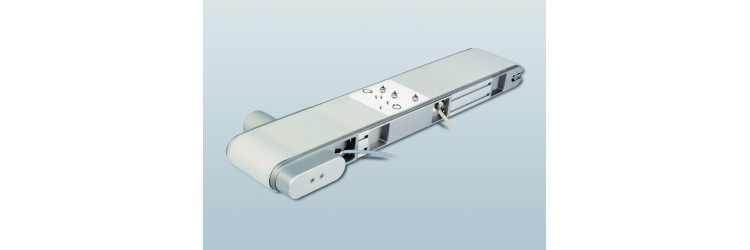

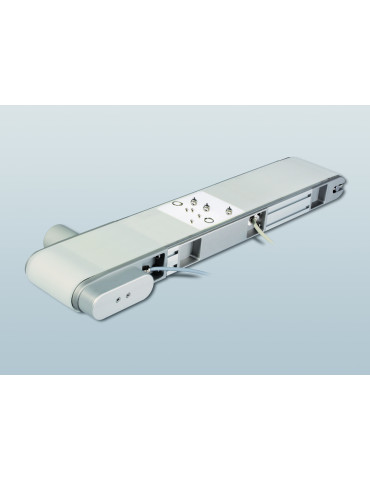

Conveyor with tranverse drive and optical window
Conveyor with tranverse drive and optical window
The perpendicular motor conveyor is compact thanks to the innovative design allowing the integration of the motor partially or in its entirety in the conveyor. It has an optical window for better control of parts and is equipped with a DC motor with servo. It is designed on the basis of profiles that can easily integrate into a new or existing production line.
Conveyors
- Standard center distance
- 800
- Standard center distance
- 800 mm
- Conveyor belt width
- 65
- Conveyor belt width
- 65 mm
- Height
- 40
- Height
- 40 mm
- Width
- 80
- Width
- 80 mm
- Maximum load
- 40
- Maximum load
- 40 N
- Linear speed factory setting
- 19
- Linear speed factory setting
- 19 m/min
- Min. linear speed, analog signal 1V DC
- 4
- Min. linear speed, analog signal 1V DC
- 4 m/min
- Max. linear speed, analog signal 10V DC
- 24
- Max. linear speed, analog signal 10V DC
- 24 m/min
- Belt designation
- Translucent flat band FDA
- Product range
- Conveyor with tranverse drive and optical window
- Type of belt
- Flat band
- Other characteristics
- 24VDC / 1.23A white color diode
- Options
- Specific conveyor belt on request. External encoder VSW-11 or VR-24-S-SW-11. Specific spacing on request.
- Connection
- Wire 2,5 m (6 x 0,14 mm²)
- Standard voltage
- 24
- Standard voltage
- 24 VDC
