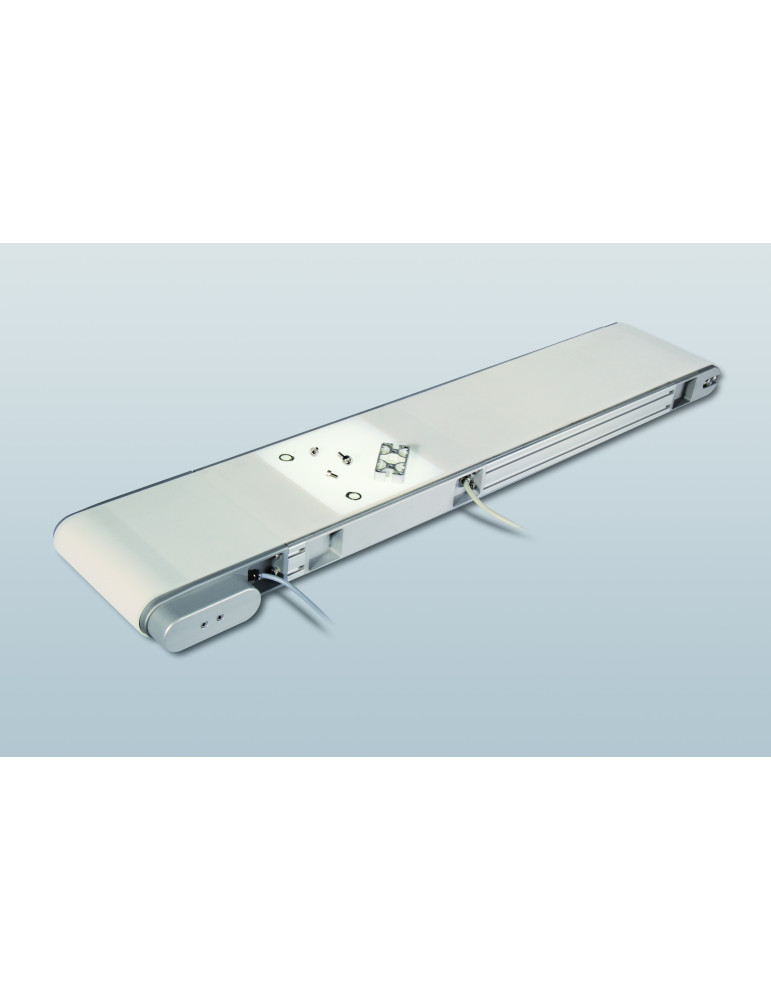

FR-40-160-Q-DL-1400-20 Conveyors

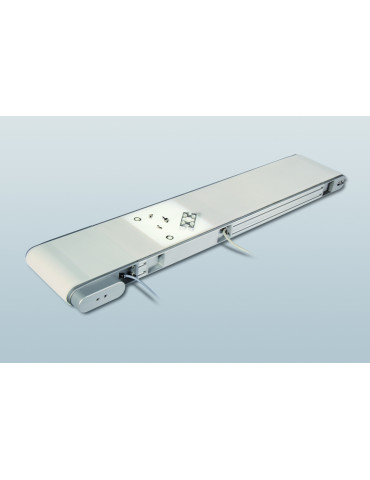

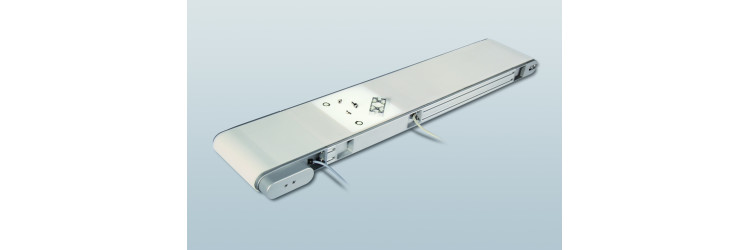

Conveyor with tranverse drive and optical window
Conveyor with tranverse drive and optical window
The perpendicular motor conveyor is compact thanks to the innovative design allowing the integration of the motor partially or in its entirety in the conveyor. It has an optical window for better control of parts and is equipped with a DC motor with servo. It is designed on the basis of profiles that can easily integrate into a new or existing production line.
Conveyors
- Belt designation
- Translucent flat band FDA
- Connection
- Wire 2,5 m (6 x 0,14 mm²)
- Standard voltage
- 24 VDC

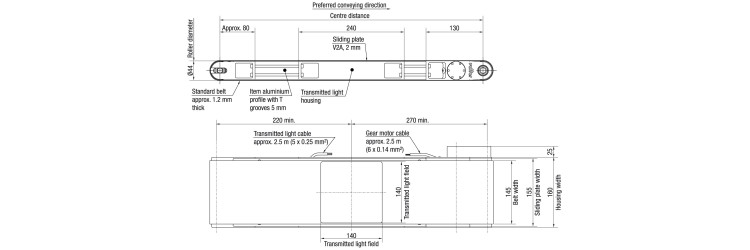

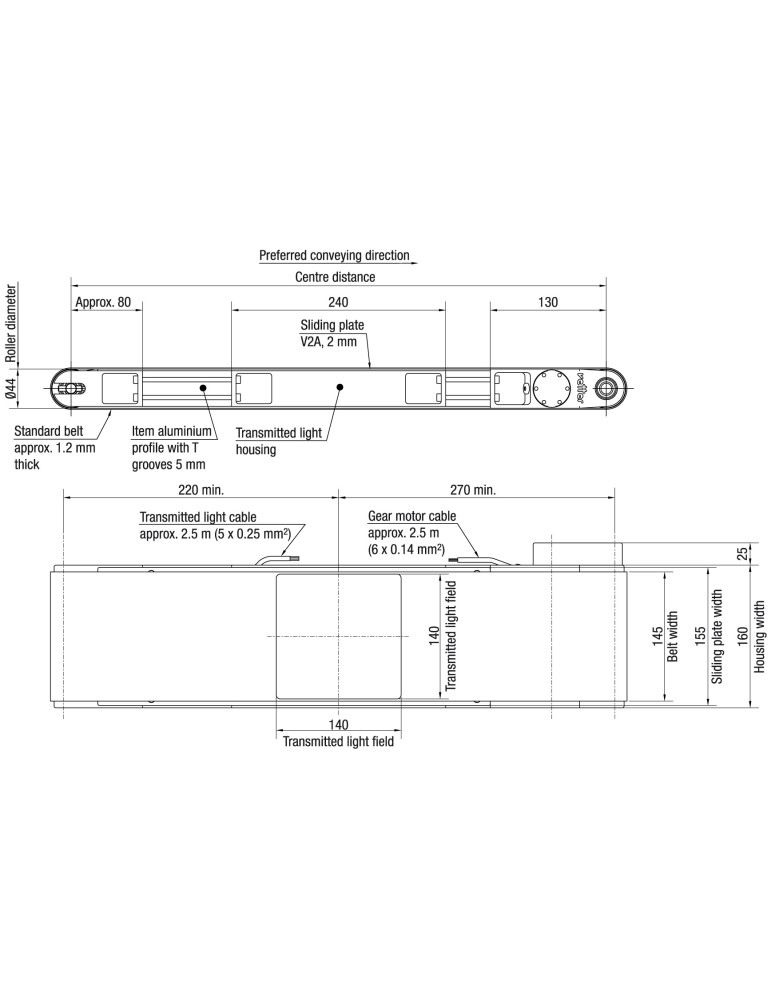

- Standard center distance
- 1400 mm
- Conveyor belt width
- 145 mm
- Height
- 40 mm
- Width
- 160 mm
- Maximum load
- 20 N
- Linear speed factory setting
- 24 m/min

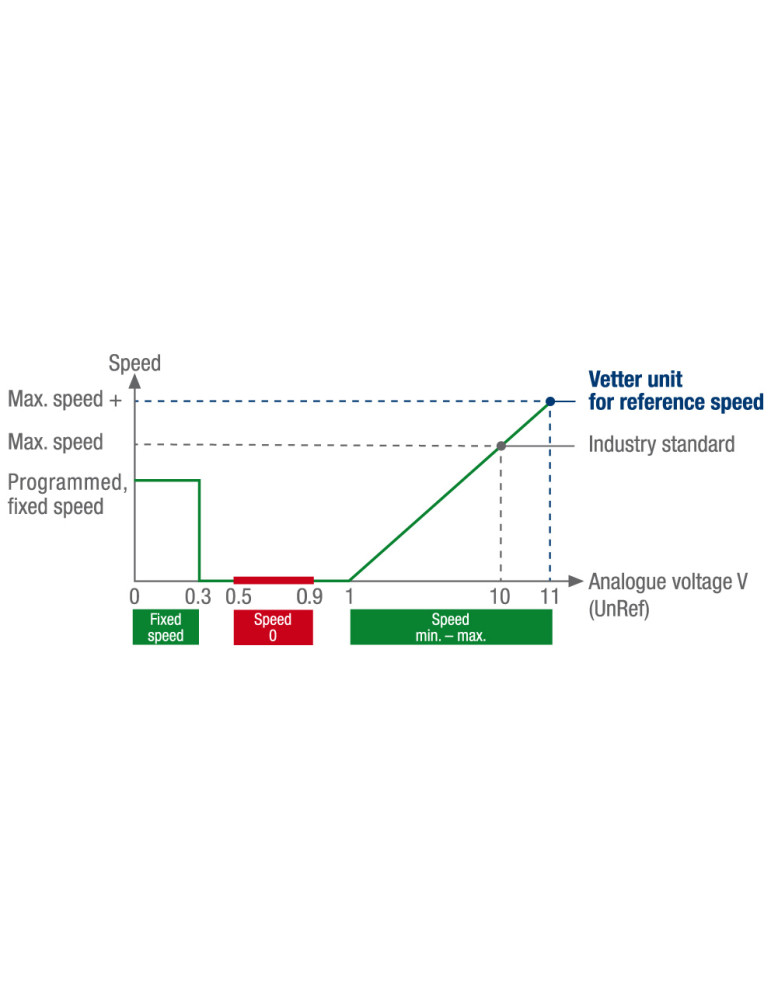

- Min. linear speed, analog signal 1V DC
- 5 m/min
- Max. linear speed, analog signal 10V DC
- 30 m/min
