FR-12-20-200-2 Conveyors

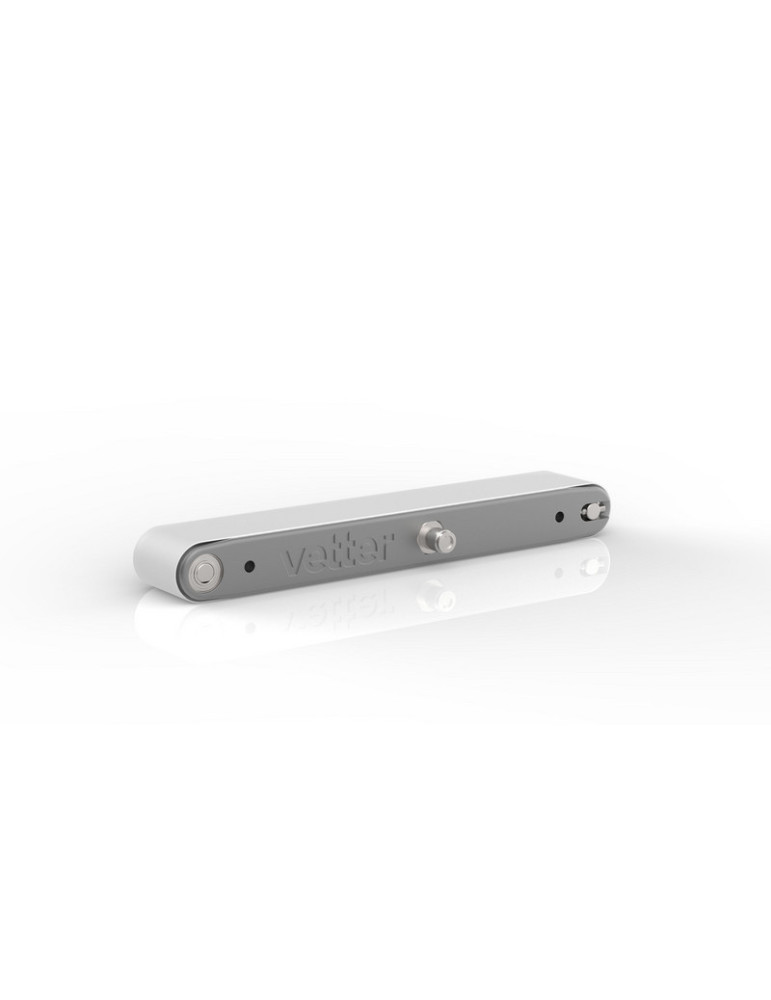

Conveyor with internal drive
Conveyor with internal drive
The mini-conveyor with integrated motor is very compact and is particularly suitable for transfers of light and small products. It is equipped with a DC motor with servo control and can be equipped depending on the product to be conveyed from a specific conveyor belt. It is designed on the basis of a profile offering multiple mounting possibilities making the implementation particularly simple and practical.
Conveyors
- Standard center distance
- 200
- Standard center distance
- 200 mm
- Conveyor belt width
- 17
- Conveyor belt width
- 17 mm
- Height
- 12
- Height
- 12 mm
- Width
- 20
- Width
- 20 mm
- Maximum load
- 2
- Maximum load
- 2 N
- Linear speed factory setting
- 1,5
- Linear speed factory setting
- 1,5 m/min
- Belt designation
- Translucent flat band FDA
- Product range
- Conveyor with internal drive
- Type of belt
- Flat band
- Other characteristics
- No speed adjustment
- Options
- Specific conveyor belt on request. Specific spacing on request.
- Connection
- Wire 2 m (4 x 0,14 mm²)
- Standard voltage
- 6
- Standard voltage
- 6 VDC
