FR-30-60-200-20 Conveyors

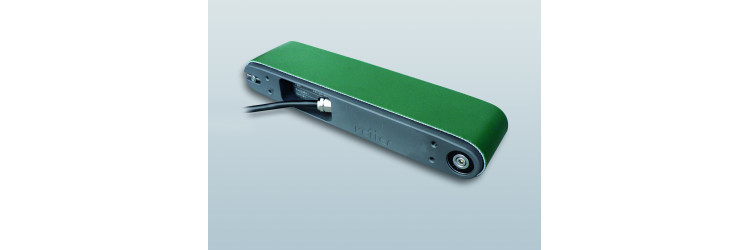

Conveyor with internal drive
Conveyor with internal drive
The mini-conveyor with integrated motor is very compact and is particularly suitable for transfers of light and small products. It is equipped with a DC motor with servo control and can be equipped depending on the product to be conveyed from a specific conveyor belt. It is designed on the basis of a profile offering multiple mounting possibilities making the implementation particularly simple and practical.
Conveyors
- Standard center distance
- 200
- Standard center distance
- 200 mm
- Conveyor belt width
- 50
- Conveyor belt width
- 50 mm
- Height
- 30
- Height
- 30 mm
- Width
- 60
- Width
- 60 mm
- Maximum load
- 20
- Maximum load
- 20 N
- Linear speed factory setting
- 9
- Linear speed factory setting
- 9 m/min
- Min. linear speed, analog signal 1V DC
- 2
- Min. linear speed, analog signal 1V DC
- 2 m/min
- Max. linear speed, analog signal 10V DC
- 10
- Max. linear speed, analog signal 10V DC
- 10 m/min
- Belt designation
- Green flat band FDA 2E/PG 02, FDA, antistatic
- Product range
- Conveyor with internal drive
- Type of belt
- Flat band
- Options
- Specific conveyor belt on request. External encoder VSW-11 or VR-24-S-SW-11. Specific spacing on request.
- Connection
- Wire 2,5 m (6 x 0,14 mm²)
- Standard voltage
- 24
- Standard voltage
- 24 VDC
