FR-40-80-Q-P-SD-20 Conveyors

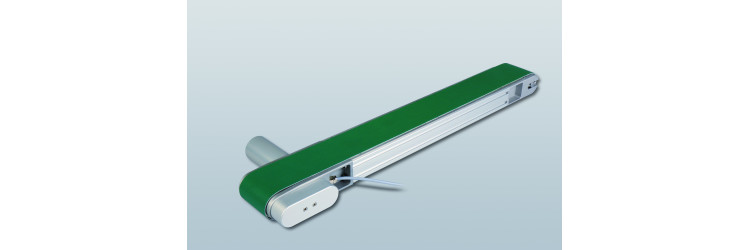

Special food conveyor with tranverse drive
Special food conveyor with tranverse drive
The special conveyor for food and pharmaceutical application with perpendicular motor is compact thanks to the innovative design allowing the integration of the motor partially or entirely in the conveyor. It is equipped with a servo motor with servo and can be provided, according to the specificity of the product to be conveyed, of a specific conveyor belt. It is designed on the basis of profiles that can easily integrate into a new or existing production line.
Conveyors
- Standard center distance
- on demand
- Standard center distance
- on demand mm
- Conveyor belt width
- 65 mm
- Conveyor belt width
- 65
- Height
- 40
- Height
- 40 mm
- Width
- 80
- Width
- 80 mm
- Maximum load
- 20
- Maximum load
- 20 N
- Linear speed factory setting
- 24
- Linear speed factory setting
- 24 m/min
- Min. linear speed, analog signal 1V DC
- 5
- Min. linear speed, analog signal 1V DC
- 5 m/min
- Max. linear speed, analog signal 10V DC
- 30
- Max. linear speed, analog signal 10V DC
- 30 m/min
- Belt designation
- Translucent flat band FDA 2E/PHB 03, antistatic
- Product range
- Special food conveyor with tranverse drive
- Type of belt
- Flat band
- Options
- Specific conveyor belt on request. External encoder VSW-11 or VR-24-S-SW-11. Specific spacing on request.
- Connection
- Wire 2,5 m (6 x 0,14 mm²)
- Standard voltage
- 24
- Standard voltage
- 24 VDC
