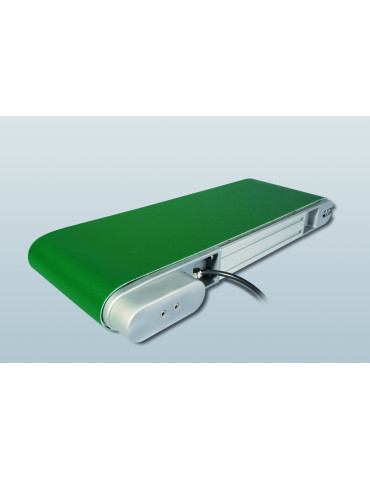

FR-40-160-Q-1400-100 Conveyors
Conveyor with tranverse drive
Conveyor with tranverse drive
The perpendicular motor conveyor is compact thanks to the innovative design allowing the integration of the motor partially or in its entirety in the conveyor. It is equipped with a servo motor with servo and can be provided, according to the specificity of the product to be conveyed, of a specific conveyor belt. It is designed on the basis of profiles that can easily integrate into a new or existing production line.
Conveyors
- Standard center distance
- 1400
- Standard center distance
- 1400 mm
- Conveyor belt width
- 145
- Conveyor belt width
- 145 mm
- Height
- 40
- Height
- 40 mm
- Width
- 160 mm
- Width
- 160
- Maximum load
- 100
- Maximum load
- 100 N
- Linear speed factory setting
- 8
- Linear speed factory setting
- 8 m/min
- Min. linear speed, analog signal 1V DC
- 1,5
- Min. linear speed, analog signal 1V DC
- 1,5 m/min
- Max. linear speed, analog signal 10V DC
- 10
- Max. linear speed, analog signal 10V DC
- 10 m/min
- Belt designation
- Green flat band FDA 2E/PG 02, FDA, antistatic
- Product range
- Conveyor with tranverse drive
- Type of belt
- Flat band
- Options
- Specific conveyor belt on request. External encoder VSW-11 or VR-24-S-SW-11. Specific spacing on request.
- Connection
- Wire 2,5 m (6 x 0,14 mm²)
- Standard voltage
- 24
- Standard voltage
- 24 VDC
