MSK-12 - C200 - V30 - perpendicular engine
MSK-12 - C200 - V30 - perpendicular engine
MSK-12 - C200 - V30 - perpendicular engine

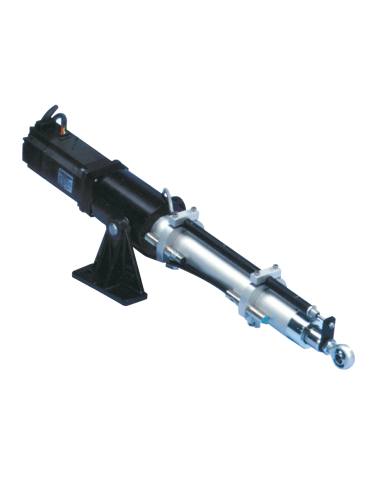

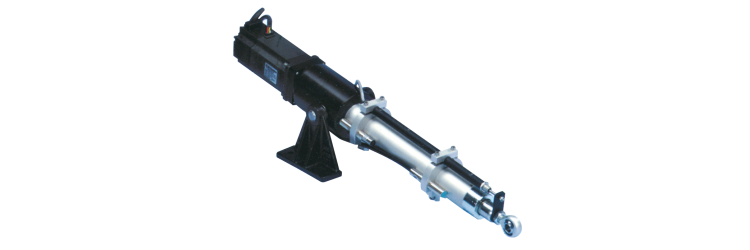

Industrial actuator – Assembly with reducer with screw and back screed
Bottom of the range of our special actuators of big capacity, the MSK12 is recommended for races lower than 500 mm and are limited in 4000N of contagious strength. As the set of the jacks of this range, they ally robustness and precision while offering a compact installation and a functioning simple. Some applications : - Process automobiles - Line of assembly - Locking of tanks in chemistry
Customised industrial actuators
- Product range
- Industrial actuator - Mounting with screw reducer and rear clevis mounting
- Wiper
- Scraper doubles at the exit of the stalk
- Color treatment
- Acrylic paint RAL 9007
- Brake
- Yes
- Screw type
- Ballscrew KG16x5/x10
- Length of stroke
- 200
- Temperature range
- -25 to +80
- Stem material
- Steel
- Stem
- With anti-rotation system
- Limit switch
- With information of return
- Stem mounting
- Tip with kneecap zinc-plated or zinc-plated screed
- Body attachment
- Anti-corrosion treated screed
- Body material
- Steel
- Product range
- Industrial actuator – Assembly with reducer with screw and back screed
- Displacement force (max. force)
- 2000
- Stroke speed
- 30
- Limit switch
- SME-8
- Number of poles
- 4
- Operating factor
- S1
- Type of voltage
- Three-phase
- Supply voltage
- 400
- IP protection type
- IP 54
- Brake voltage
- 400
- Motor power
- 0.18
- Options
- Electric Limiteur of mechanical overload. Sensor of position: coder or linear potentiometer Tachometer Threading of various steps Execution for outdoor use and in corrosive environm
- Accessories
- Landings supports Screed of fixationNut of safety Bellows and tubes of protection
