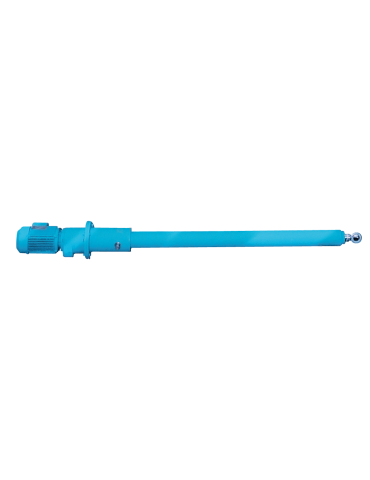

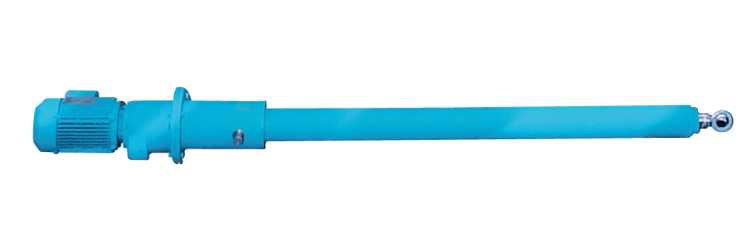

MST-40 - C600 - V5 - in-line engine Customised industrial actuators
Industrial actuator - Assembly with in-line engine and fixation by pins
Accueil | Electric Actuators | Customised industrial actuators |
MST-40 - C600 - V5 - in-line engine
MST-40 - C600 - V5 - in-line engine
MST-40 - C600 - V5 - in-line engine
Industrial actuator - Assembly with in-line engine and fixation by pins
The MSK40 actuators are indicated when the strokes reach 2 meters for forces up to 3 tons. Their robustness and precision, combined with a simple connection that facilitates maintenance operations, allow them to meet the constraints of a wide variety of installations. Some applications: - Heavy industrial chemical processes - Forging of automobile parts - Food production line
Customised industrial actuators
- Product range
- Industrial actuator - Assembly with in-line motor and trunnion mounting
- Wiper
- Scraper doubles at the exit of the stalk
- Color treatment
- Acrylic paint RAL 9007
- Brake
- Yes
- Screw type
- Trapezoid screw TR50x8
- Length of stroke
- 600
- Temperature range
- -25 to 80
- Stem material
- Chrome-plated hard
- Stem
- With anti-rotation system
- Limit switch
- With information of return
- Stem mounting
- Tip with kneecap zinc-plated or zinc-plated screed
- Body attachment
- Anti-corrosion treated pins
- Body material
- Steel
- Product range
- Industrial actuator - Assembly with in-line engine and fixation by pins
- Displacement force (max. force)
- 30000
- Stroke speed
- 5
- Limit switch
- SME-8
- Number of poles
- 4
- Operating factor
- S1
- Type of voltage
- Three-phase
- Supply voltage
- 400
- IP protection type
- IP 54
- Brake voltage
- 400
- Motor power
- 0.55
- Options
- Electric Limiteur of mechanical overload. Sensor of position: coder or linear potentiometer Tachometer Threading of various steps Execution for outdoor use and in corrosive environment.
- Accessories
- Landings supports Screed of fixationNut of safety Bellows and tubes of protection
