GT250B-13 Holding magnets
Electromagnetic sucker
Electromagnetic sucker

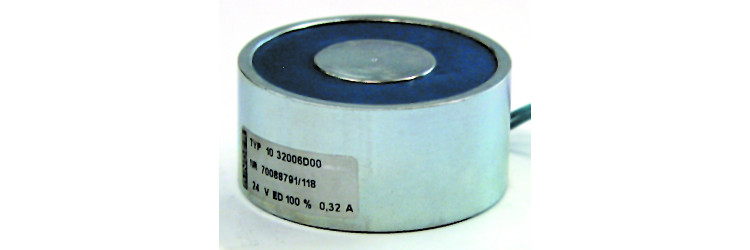

GT250B-13: this cylindrical electromagnetic sucker makes it possible to keep a ferromagnetic part under tension by closing the magnetic field by the poles. In the absence of power supply to the suction pad coil, the electromagnetic force is canceled and the ferromagnetic part comes off.
Holding magnets
- Product range
- Electromagnetic sucker
- Product range
- Electromagnetic sucker
- Protection index
- IP65
- Thickness of counter plates
- 13
- Thickness of counter plates
- 13 mm
- Air gap force zero
- 11600
- Air gap force zero
- 11600 N
- Air gap force 0.1 mm
- 11000 N
- Air gap force 0.1 mm
- 11000
- Air gap force 0.2 mm
- 10500
- Air gap force 0.2 mm
- 10500 N
- Holdingmagnet connection
- Free wires
- Insulation class of the holdingmagnet
- E
- Standard voltage of the suction cups
- 24
- Standard voltage of the suction cups
- 24 V
- Duty cycle of the holdingmagnet
- 100
- Duty cycle of the holdingmagnet
- 100 %
- Power of the holdingmagnet
- 90
- Power of the holdingmagnet
- 90 W
- Holdingmagnets options
- Other voltages and duty factors on request. Note: When the suction pads or bars are used for handling, it will be necessary to choose a safety factor of 3 on the force and to take note of the technica
- Air gap force 1 mm
- 7000
- Air gap force 1 mm
- 7000 N

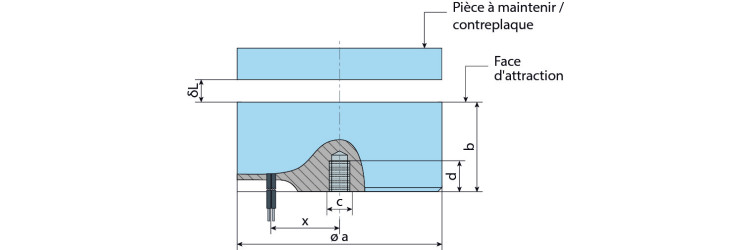

- Dimension X
- 98
- Dimension X
- 98 mm
- Length of the wires
- 300
- Length of the wires
- 300 mm
- Air gap force 0.5 mm
- 9000
- Air gap force 0.5 mm
- 9000 N
- Weight of the holdingmagnets
- 25,9
- Weight of the holdingmagnets
- 25,9 kg
- Dimension A
- 250
- Dimension A
- 250 mm
- Dimension B
- 80
- Dimension B
- 80 mm
- Dimension C
- M24
- Dimension C
- M24 mm
- Dimension D
- 36
- Dimension D
- 36 mm
