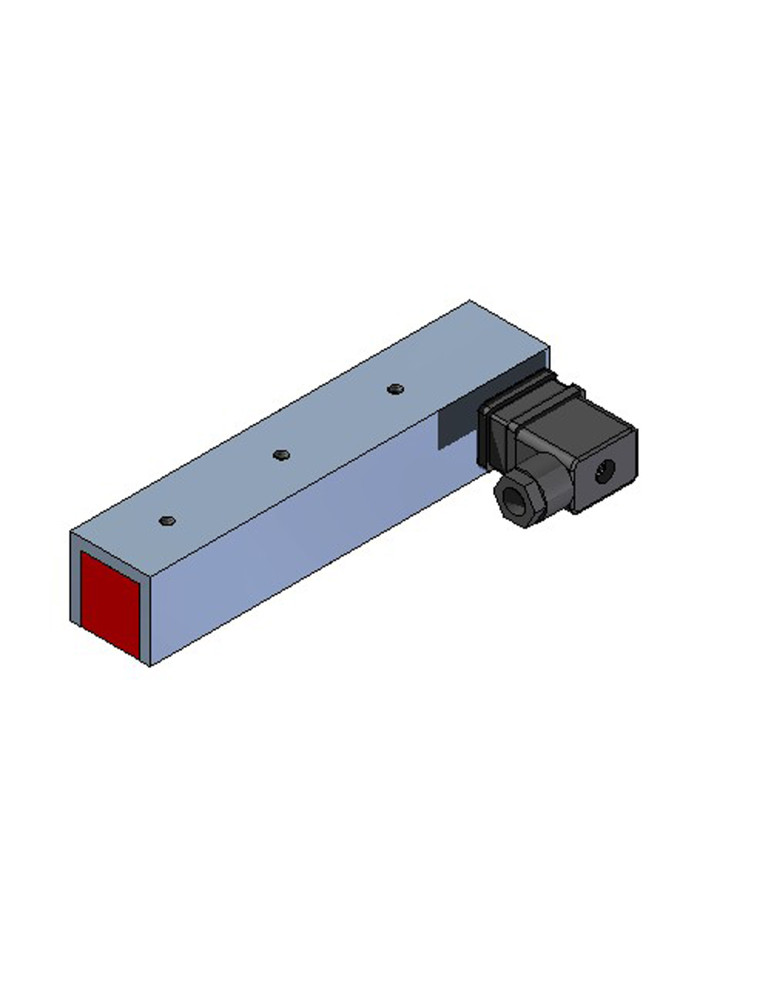

ERM 600/35-10 Holding magnets
Electromagnetic bar
Electromagnetic bar
ERM 600/35-10: parallelepiped in shape, this electromagnetic bar holds a ferromagnetic part in place by closing the magnetic field around the poles of the part to be held. When the bar coil is not powered, the electromagnetic force is canceled and the ferromagnetic part is released.
Holding magnets
- Product range
- Electromagnetic bar
- Product range
- Electromagnetic bar
- Protection index
- IP65
- Thickness of counter plates
- 10
- Thickness of counter plates
- 10 mm
- Air gap force zero
- 5026
- Air gap force zero
- 5026 N
- Air gap force 0.1 mm
- 3120
- Air gap force 0.1 mm
- 3120 N
- Air gap force 0.2 mm
- 1806
- Air gap force 0.2 mm
- 1806 N
- Holdingmagnet connection
- DIN connector
- Insulation class of the holdingmagnet
- B
- Standard voltage of the suction cups
- 24
- Standard voltage of the suction cups
- 24 V
- Duty cycle of the holdingmagnet
- 100
- Duty cycle of the holdingmagnet
- 100 %
- Power of the holdingmagnet
- 53
- Power of the holdingmagnet
- 53 W
- Holdingmagnets options
- Other voltages and duty factors on request. Note: When the suction pads or bars are used for handling, it will be necessary to choose a safety factor of 3 on the force and to take note of the technica
- Air gap force 1 mm
- 120
- Air gap force 1 mm
- 120 N
- Air gap force 0.5 mm
- 400
- Air gap force 0.5 mm
- 400 N
- Cable gland
- PG-9

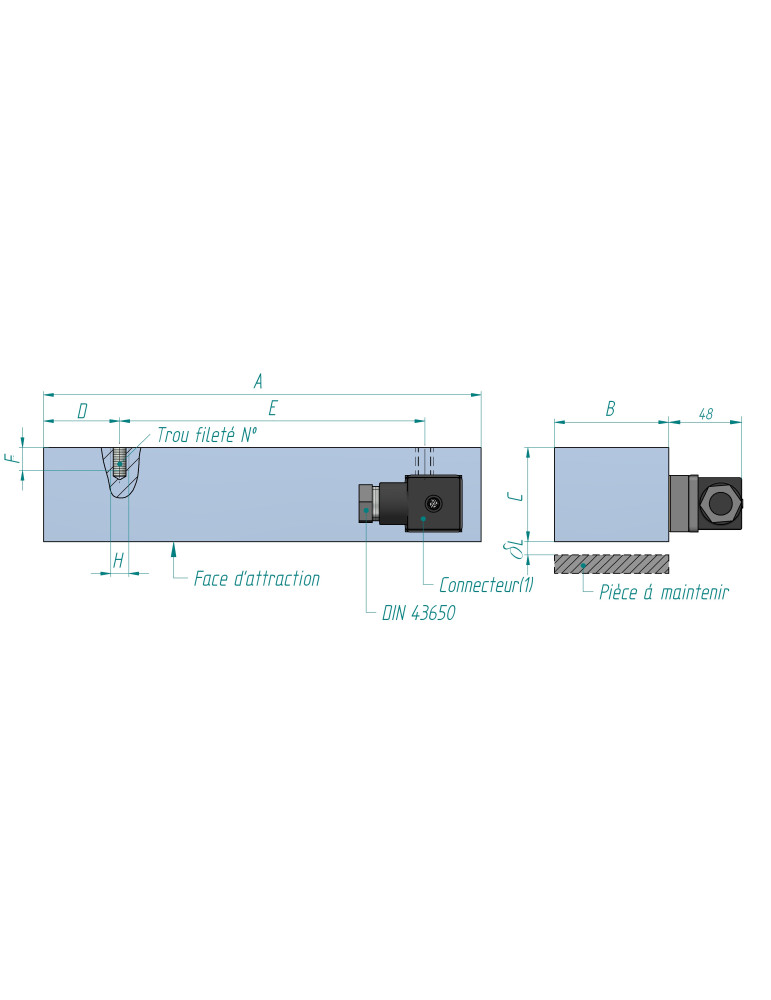

- Dimension F
- 12 mm
- Dimension F
- 12
- Dimension E
- 50
- Dimension E
- 50 mm
- Dimension H
- M6 x 12
- Weight of the holdingmagnets
- 4,5 kg
- Weight of the holdingmagnets
- 4,5
- Dimension A
- 625
- Dimension A
- 625 mm
- Dimension B
- 35 +/- 0,3
- Dimension B
- 35 +/- 0,3 mm
- Dimension C
- 34 +/- 0,1
- Dimension C
- 34 +/- 0,1 mm
- Dimension D
- 25
- Dimension D
- 25 mm
