VM 100-10 Holding magnets
Permanent magnet section cup
Permanent magnet section cup

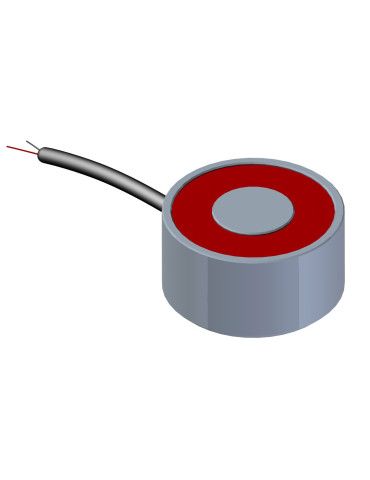

VM 100-10: cylindrical in shape, this permanent magnet suction cup holds ferromagnetic parts in place thanks to the magnetic field generated by the integrated permanent magnet, which ensures a hold-up force when de-energized. The magnetic field generated by the power supply cancels out the magnetic field of the magnet, thereby releasing the part. The attractive force induced by the magnet is restored when the power supply to the coil is cut off.
Holding magnets
- Product range
- Permanent magnet section cup
- Product range
- Permanent magnet section cup
- Protection index
- IP65
- Thickness of counter plates
- 10
- Thickness of counter plates
- 10 mm
- Air gap force zero
- 1000 N
- Air gap force zero
- 1000
- Air gap force 0.1 mm
- 745
- Air gap force 0.1 mm
- 745 N
- Air gap force 0.2 mm
- 519
- Air gap force 0.2 mm
- 519 N
- Holdingmagnet connection
- Free wires
- Insulation class of the holdingmagnet
- E
- Standard voltage of the suction cups
- 24
- Standard voltage of the suction cups
- 24 V
- Duty cycle of the holdingmagnet
- 100
- Duty cycle of the holdingmagnet
- 100 %
- Power of the holdingmagnet
- 25
- Power of the holdingmagnet
- 25 W
- Holdingmagnets options
- Other voltages and duty factors on request. Note: When the suction pads or bars are used for handling, it will be necessary to choose a safety factor of 3 on the force and to take note of the technica
- Dimension F
- 115
- Dimension F
- 115 mm
- Dimension E
- 147
- Dimension E
- 147 mm
- Weight of the holdingmagnets
- 2,2
- Weight of the holdingmagnets
- 2,2 kg
- Dimension A
- 100
- Dimension A
- 100 mm
- Dimension B
- M10
- Dimension B
- M10 mm
- Dimension C
- 50 +/- 0,1
- Dimension C
- 50 +/- 0,1 mm
- Dimension D
- 10
- Dimension D
- 10 mm
