MOY1B10 Hubs

Standard hubs with support

Accueil  |  Belts,Pulleys, Accessories  |  Accessories  |  Hubs  |
MOY1B10

MOY1B10


Standard hubs with support

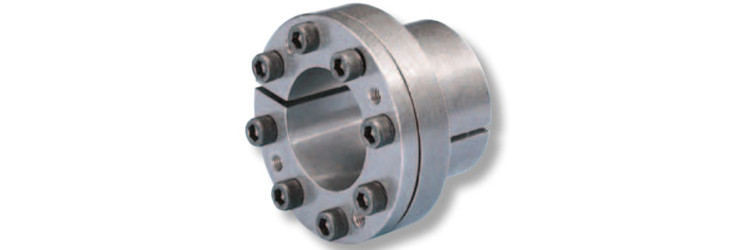

The Binder-Magnetic Expanding Hub is especially suitable for quick mounting, making it easy to index multiple belts in the conveying area. This one can be mounted with the recessed support, model MOY1B & MOY2B or protruding support model MOY1B.
Hubs
Download the 3D file
Download PDF
Grayed out functions require you to be logged in to your account
login to my account

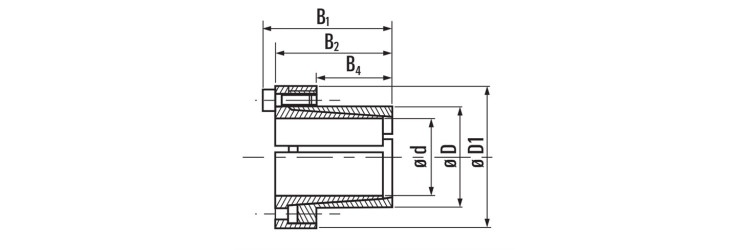

Dimensional plan

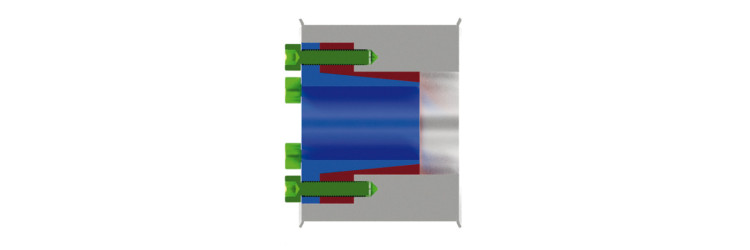

Recessed mounting

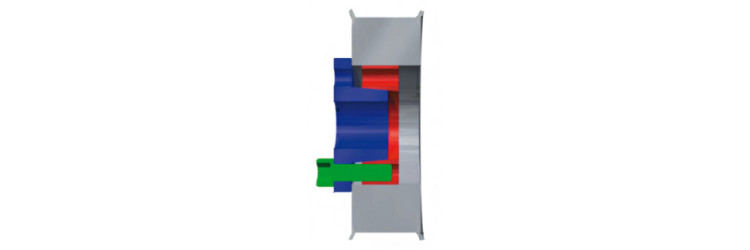

Mounting support protruding
Transmitted torque
49 N⋅m
Clamping screw N x type
4 - M4x12
Tightening torque
5,2 N⋅m
Bore diameter D
16 mm
Embedded shoulder diameter Da
34 mm
Shoulder depth a
13 mm
Dimensions dxD
10 x 16 mm
Bore diameter of hubs
10 mm
Dimension D1
32 mm
Dimension B1
31 mm
Dimension B2
27 mm
Dimension B3
14 mm
Technical data
Installation: tighten the CHC screws on the periphery uniformly in opposition and respecting the tightening torque indicated in the data sheet. Disassembly: Remove the screws and retighten them in the extraction
holes in opposition and uniformly until th
moy_gamme_produit
Standard hubs with support
Product range
Standard hubs with support
