BINDER CUSTOM 10 AT5 M Linear belts
BRECO® Standard Belt
BRECO® Standard Belt
BINDER CUSTOM 10 AT5 M: this belt is our core product range. With a wide variety of pitches/profiles, it can be adapted to all kinematics and constraints with a large selection of options available.
Linear belts
- Range
- BINDERcustom
- Linear belt product range
- BRECO® Standard Belt
- Width tolerance
- +/- 0.5 mm
- Pitch
- 5 mm
- Belt width
- 10 mm
- Length tolerance
- +/-0.8 mm
- Thickness tolerance of the tooth
- 0,1/-0,3 mm
- Tolerance of thickness of the tooth
- 0/-0,05 mm
- Z min single bending E cable
- 15
- Ø min Flexion simple câble E
- 25 mm
- Z min alternating bending E cord
- 20
- Ø min alternée simple câble E
- 50 mm
- Z min single bending stainless steel cable
- 22
- Ø min Flexion simple câble Inox
- 35 mm
- Z min alternating bending stainless steel cord
- 30
- Ø min alternée simple câble Inox
- 60 mm
- Z min single bending standard cable
- 18
- Ø min Flexion simple câble standard
- 30 mm
- Z min alternating bending standard cord
- 25
- Ø min alternée simple câble standard
- 60 mm
- Application
- Precision application

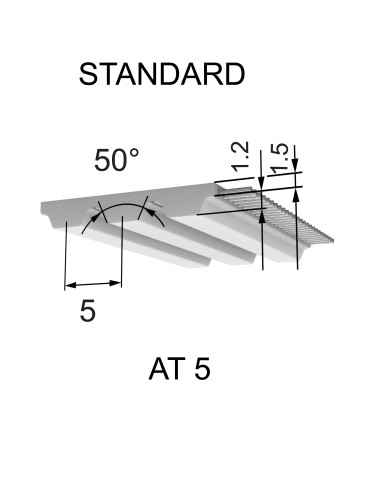

- Profile / Pitch
- AT5
- Profile
- AT
- Double toothed belt
- no
- PU Material steel tension member
- White TPU ST1
- Shore hardness steel tension member PU belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 to 80 °C
- PU Material stainless steel tension member
- TPU AU1 translucent
- Shore hardness stainless steel tension member PU belt
- 92 ShA
- Temperature range of stainless steel tension member belt
- 0 to 80 °C
- Winding
- S+Z
- Weight
- 0,033 kg/m
- Product range
- BRECO® Standard Belt
- Options
- PAZ
- Additional information
- Storage: rolls of 50 or 100 m
- Constant stiffness of the CSPE reinforcement (steel)
- 0,175*10^6 N
- Constant stiffness of the CSPE reinforcement (stainless steel)
- 0,175*10^6 N
- Steel tension member permissible force FN
- 700 N
- Stainless steel member permissible force FN
- 455 N
- N max
- 10000 tr/min
- V max
- 80 m/s
