BINDER PREMIUM 20 ATL5 M Linear belts
BRECO® Performance belt
BRECO® Performance belt
Linear belts
- Range
- BINDERpremium
- Linear belt product range
- BRECO® Performance belt
- Application
- High performance application

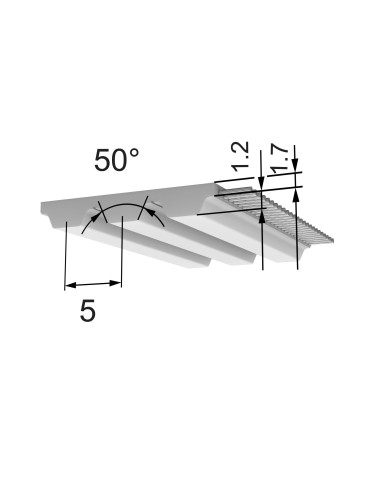

- Profile / Pitch
- ATL5
- Profile
- ATL
- Double toothed belt
- no
- PU Material steel tension member
- White TPU ST1
- Shore hardness steel tension member PU belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 to 80 °C
- PU Material stainless steel tension member
- TPU AU1 translucent
- Shore hardness stainless steel tension member PU belt
- 92 ShA
- Temperature range of stainless steel tension member belt
- 0 to 80 °C
- Winding
- S+Z
- Weight
- 0,075 kg/m
- Width tolerance
- +/- 0.5 mm
- Pitch
- 5 mm
- Belt width
- 20 mm
- Length tolerance
- +/-0.8 mm
- Thickness tolerance of the tooth
- 0,1/-0,3 mm
- Tolerance of thickness of the tooth
- 0/-0,1 mm
- Z min single bending standard cable
- 25
- Ø min Flexion simple câble standard
- 40 mm
- Z min alternating bending standard cord
- 25
- Ø min alternée simple câble standard
- 60 mm
- Constant stiffness of the CSPE reinforcement (steel)
- 0,420*10^6 N
- Steel tension member permissible force FN
- 1680 N
- N max
- 10000 tr/min
- V max
- 80 m/s
- Product range
- BRECO® Performance belt
- Options
- PAZ
- Additional information
- Storage: rolls of 50 or 100 m
