BINDER CUSTOM 100 ATS15 M Linear belts
BRECO® Performance belt
BRECO® Performance belt
BINDER CUSTOM 100 ATS15 M: this belt is suitable for high-stress applications. It is equipped with a reinforced reinforcement which gives the system a better positioning accuracy, a greater rigidity as well as a more efficient dynamic behavior.
Linear belts
- Range
- BINDERcustom
- Linear belt product range
- BRECO® Performance belt
- Width tolerance
- +/- 1 mm
- Pitch
- 15 mm
- Belt width
- 100 mm
- Length tolerance
- +/-0,8 mm
- Thickness tolerance of the tooth
- 0,1/-0,3 mm
- Tolerance of thickness of the tooth
- 0/-0,15 mm
- Z min single bending stainless steel cable
- 30
- Ø min Flexion simple câble Inox
- 180 mm
- Z min alternating bending stainless steel cord
- 60
- Ø min alternée simple câble Inox
- 300 mm
- Z min single bending standard cable
- 25
- Ø min Flexion simple câble standard
- 120 mm
- Z min alternating bending standard cord
- 40
- Ø min alternée simple câble standard
- 250 mm
- Application
- High performance application

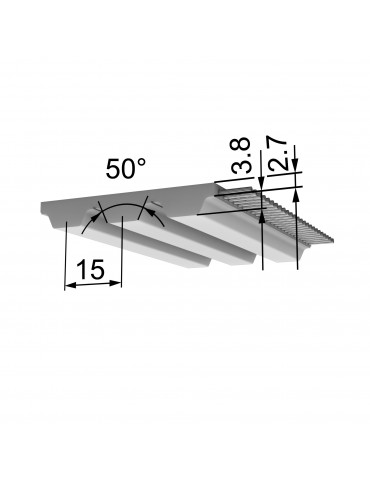

- Profile / Pitch
- ATS15
- Profile / Pitch
- 15,00 ATS
- Profile
- ATS
- Double toothed belt
- no
- PU Material steel tension member
- White TPU ST1
- Shore hardness steel tension member PU belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 to 80 °C
- PU Material stainless steel tension member
- TPU AU1 translucent
- Shore hardness stainless steel tension member PU belt
- 92 ShA
- Temperature range of stainless steel tension member belt
- 0 to 80 °C
- Winding
- S+Z
- Weight
- 1 kg/m
- Product range
- BRECO® Performance belt
- Options
- PAZ
- Additional information
- Storage: 50 or 100 m rolls and longer lengths on request
- Constant stiffness of the CSPE reinforcement (steel)
- 0,686*10^7 N
- Constant stiffness of the CSPE reinforcement (stainless steel)
- 0,686*10^7 N
- Steel tension member permissible force FN
- 27080 N
- Stainless steel member permissible force FN
- 21560 N
- N max
- 8000 tr/min
- V max
- 48 m/s
