BINDER CUSTOM 100 HTD8HS M Linear belts
CONTI® Synchrodrive High Resistance Belt
CONTI® Synchrodrive High Resistance Belt
BINDER CUSTOM 100 HTD8HS M: this belt is reserved for linear applications with heavy loads and standard winding diameters.
Linear belts
- Range
- BINDERcustom
- Linear belt product range
- CONTI® Synchrodrive High Resistance Belt
- Application
- High strength application

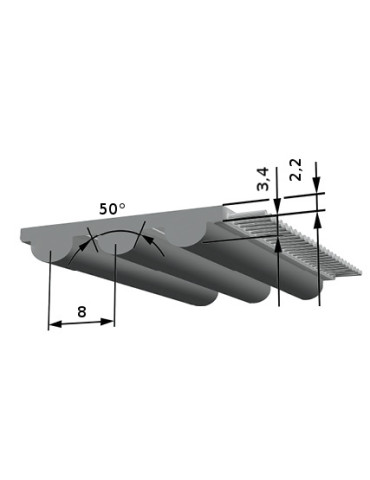

- Profile / Pitch
- HTD8
- Profile
- HTD
- Double toothed belt
- no
- PU Material steel tension member
- black
- Shore hardness steel tension member PU belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 to 80 °C
- PU Material stainless steel tension member
- black
- Shore hardness stainless steel tension member PU belt
- 92 ShA
- Temperature range of stainless steel tension member belt
- 0 to 80 °C
- Winding
- S+Z
- Weight
- 0,772 kg/m
- Width tolerance
- +/- 0.8 mm
- Pitch
- 8 mm
- Belt width
- 100 mm
- Length tolerance
- +/-1 mm
- Thickness tolerance of the tooth
- +/-0,4 mm
- Z min single bending standard cable
- 28
- Ø min Flexion simple câble standard
- 70 mm
- Z min alternating bending standard cord
- 28
- Ø min alternée simple câble standard
- 120 mm
- Constant stiffness of the CSPE reinforcement (steel)
- 5,30*10^6 N
- Steel tension member permissible force FN
- 21000 N
- N max
- 10000 tr/min
- V max
- 60 m/s
- Product range
- CONTI® Synchrodrive High Resistance Belt
- Additional information
- Storage: 30 or 60 m rolls and longer lengths on request
