BINDER ACCESS 75 T20 CLA M

BRECOclassic® belt

Linear belts
Grayed out functions require you to be logged in to your account
login to my account
Tangential force transmissible by the teeth
Range
BINDERaccess
Linear belt product range
BRECOclassic® Belt
Application
Simple application

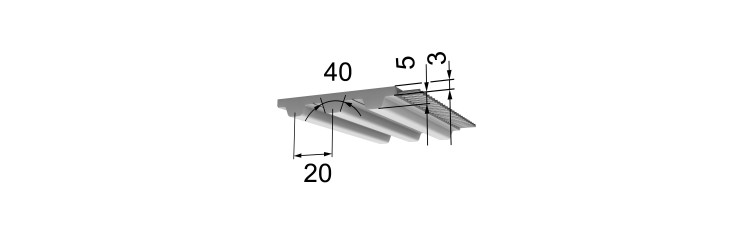

Profile / Pitch
T20
Profile
T
Double toothed belt
no
PU Material steel tension member
White TPU CLA
Shore hardness steel tension member PU belt
92 ShA
Temperature range of steel tension member belt
0 to 80 °C
Winding
S+Z
Weight
0,552 kg/m
Constant stiffness of the CSPE reinforcement (steel)
2,63*10^6 N
Steel tension member permissible force FN
10500 N
N max
6500 tr/min
V max
40 m/s
Width tolerance
+/- 1 mm
Pitch
20 mm
Belt width
75 mm
Length tolerance
+/-0.8 mm
Thickness tolerance of the tooth
0,1/-0,3 mm
Tolerance of thickness of the tooth
0/-0,15 mm
Z min single bending standard cable
15
Ø min Flexion simple câble standard
120 mm
Z min alternating bending standard cord
25
Ø min alternée simple câble standard
120 mm
