BINDER ACCESS 25,4 T1/2 CLA M Linear belts
BRECOclassic® belt
BRECOclassic® belt
BINDER ACCESS 25,4 T1/2 CLA M: this toothed belt is available in a wide range of pitches and tooth profiles. For applications where a basic product is sufficient, the BRECOclassic range is the perfect solution.
Linear belts
- Range
- BINDERaccess
- Linear belt product range
- BRECOclassic® Belt
- Width tolerance
- +/- 0.5 mm
- Pitch
- 13 mm
- Belt width
- 25 mm
- Length tolerance
- +/-0.8 mm
- Thickness tolerance of the tooth
- 0,1/-0,3 mm
- Tolerance of thickness of the tooth
- 0/-0.1 mm
- Z min single bending standard cable
- 14
- Ø min Flexion simple câble standard
- 60 mm
- Z min alternating bending standard cord
- 20
- Ø min alternée simple câble standard
- 80 mm
- Application
- Simple application

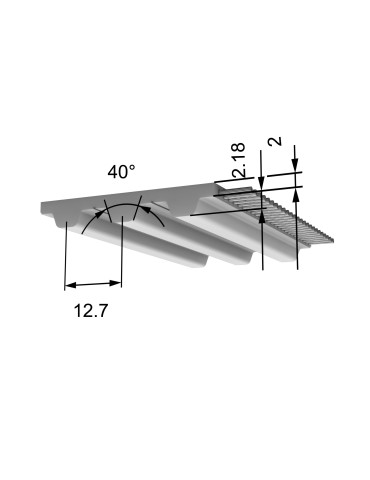

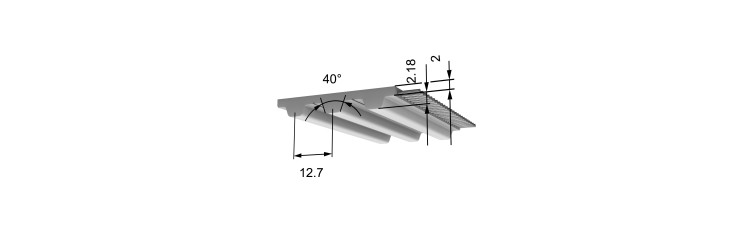

- Profile / Pitch
- T1/2
- Profile
- T
- Double toothed belt
- no
- PU Material steel tension member
- White TPU CLA
- Shore hardness steel tension member PU belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 to 80 °C
- Winding
- S+Z
- Weight
- 0,108 kg/m
- Product range
- BRECOclassic® belt
- Options
- PAZ
- Additional information
- Storage: 50 or 100 m rolls and longer lengths on request
- Constant stiffness of the CSPE reinforcement (steel)
- 0,55*10^6 N
- Steel tension member permissible force FN
- 2200 N
- N max
- 10000 tr/min
- V max
- 60 m/s
