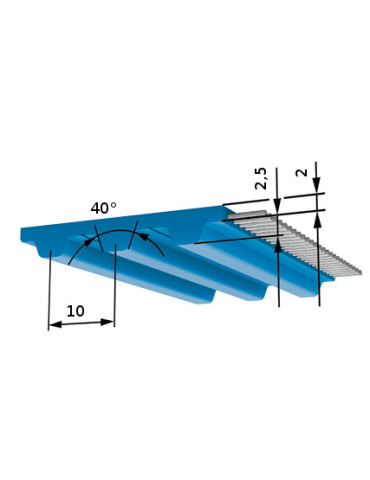

BINDER PREMIUM 100 T10 PRO M Linear belts
BRECOprotect® Alimentary Belt
BRECOprotect® Alimentary Belt
Linear belts
- Range
- BINDERpremium
- Linear belt product range
- BRECOprotect® Alimentary Belt
- Application
- Food application

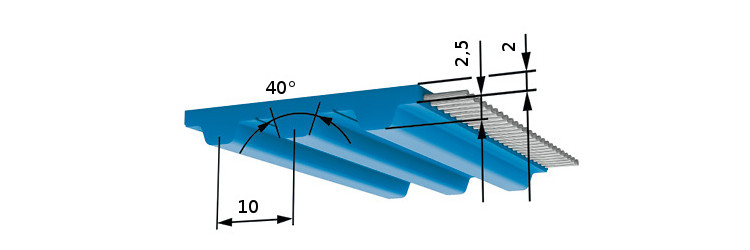

- Profile / Pitch
- T10
- Profile
- T
- Double toothed belt
- no
- PU Material steel tension member
- Blue TPU AU1
- Shore hardness steel tension member PU belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 to 80 °C
- PU Material stainless steel tension member
- Blue TPU AU1
- Shore hardness stainless steel tension member PU belt
- 92 ShA
- Temperature range of stainless steel tension member belt
- 0 to 80 °C
- Weight
- 0,454 kg/m
- Width tolerance
- +/- 0.5 mm
- Pitch
- 10 mm
- Belt width
- 100 mm
- Length tolerance
- +/-0.8 mm
- Thickness tolerance of the tooth
- 0,1/-0,3 mm
- Tolerance of thickness of the tooth
- 0/-0,1 mm
- Z min single bending standard cable
- 15
- Ø min Flexion simple câble standard
- 60 mm
- Z min alternating bending standard cord
- 20
- Ø min alternée simple câble standard
- 60 mm
- Constant stiffness of the CSPE reinforcement (steel)
- 22,0*10^6 N
- Steel tension member permissible force FN
- 8800 N
- N max
- 5000 tr/min
- V max
- 30 m/s
- Product range
- BRECOprotect® Alimentary Belt
- Additional information
- Storage: 50 or 100 m rolls and longer lengths on request
