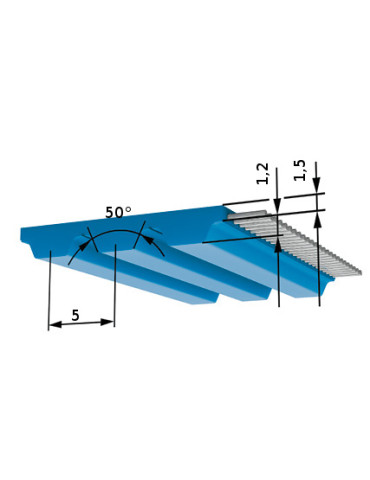

BINDER PREMIUM 25 AT5 PRO M Linear belts
BRECOprotect® Alimentary Belt
BRECOprotect® Alimentary Belt
BINDER PREMIUM 25 AT5 PRO M: this belt has been developed for aggressive environments and food applications. In addition, it is FDA compliant according to 21 CFR regulations and comply with migration tests according to European directives.
Linear belts
- Range
- BINDERpremium
- Linear belt product range
- BRECOprotect® Alimentary Belt
- Width tolerance
- +/- 0.5 mm
- Pitch
- 5 mm
- Belt width
- 25 mm
- Length tolerance
- +/-0.8 mm
- Thickness tolerance of the tooth
- 0,1/-0,3 mm
- Tolerance of thickness of the tooth
- 0/-0,05 mm
- Z min single bending stainless steel cable
- 22
- Ø min Flexion simple câble Inox
- 35 mm
- Z min alternating bending stainless steel cord
- 30
- Ø min alternée simple câble Inox
- 60 mm
- Z min single bending standard cable
- 18
- Ø min Flexion simple câble standard
- 30 mm
- Z min alternating bending standard cord
- 25
- Ø min alternée simple câble standard
- 60 mm
- Application
- Food application

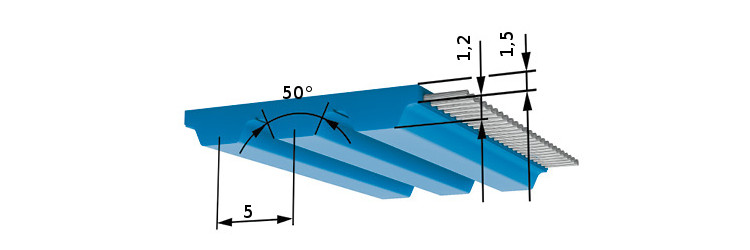

- Profile / Pitch
- AT5
- Profile
- AT
- Double toothed belt
- no
- PU Material steel tension member
- Blue TPU AU1
- Shore hardness steel tension member PU belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 to 80 °C
- PU Material stainless steel tension member
- Blue TPU AU1
- Shore hardness stainless steel tension member PU belt
- 92 ShA
- Temperature range of stainless steel tension member belt
- 0 to 80 °C
- Weight
- 0,082 kg/m
- Product range
- BRECOprotect® Alimentary Belt
- Additional information
- Storage: 50 or 100 m rolls and longer lengths on request
- Constant stiffness of the CSPE reinforcement (steel)
- 0,440*10^6 N
- Steel tension member permissible force FN
- 1750 N
- N max
- 8000 tr/min
- V max
- 65 m/s
