BINDER PREMIUM 50 AT15 MOV M Linear belts
BRECOmove® Belt
BRECOmove® Belt
Linear belts
- Range
- BINDERpremium
- Linear belt product range
- BRECOmove® Belt
- Application
- High performance application

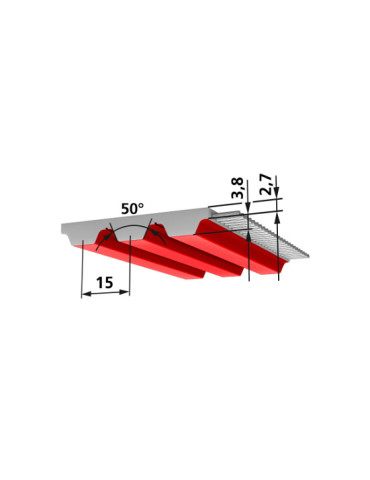

- Profile / Pitch
- AT15
- Profile
- AT
- Double toothed belt
- no
- PU Material steel tension member
- White TPU ST1
- Shore hardness steel tension member PU belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 to 80 °C
- Shore hardness stainless steel tension member PU belt
- 94 ShA
- Temperature range of stainless steel tension member belt
- 0 to 80 °C
- Winding
- S+Z
- Weight
- 0,473 kg/m
- Width tolerance
- +/-0,1 mm
- Pitch
- 15 mm
- Belt width
- 50 mm
- Length tolerance
- +/-0.8 mm
- Thickness tolerance of the tooth
- 0,1/-0,3 mm
- Tolerance of thickness of the tooth
- 0/-0,15 mm
- Z min single bending standard cable
- 20
- Ø min Flexion simple câble standard
- 100 mm
- Z min alternating bending standard cord
- 25
- Ø min alternée simple câble standard
- 120 mm
- Constant stiffness of the CSPE reinforcement (steel)
- 6,82*10^6 N
- Steel tension member permissible force FN
- 18200 N
- N max
- 8000 tr/min
- V max
- 48 m/s
- Product range
- BRECOmove® Belt
- Additional information
- Storage: 50 or 100 m rolls and longer lengths on request
