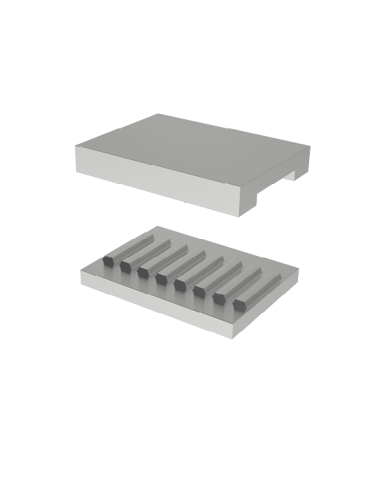

32T10Variant A Type 1

Tension plate BRECO®fix

The BRECO®fix tensioners enable the user to establish the pre-tension and secure the ends of a BRECO® linear belt on a linear drive. They have been designed to take into account the breaking load of the belt.
Plaques de tensions
Grayed out functions require you to be logged in to your account
login to my account
Material lower plate
AL2017
Material upper plate
AL7075
Variant
Variant A
Permissible nominal force
28800
Profile / pitch
T10
Profile
T
Pitch
10
Type
Type 1
Belt width B
32
Dimension B
60
Dimension L
80
Dimension H
19,5
Product range
Tension plate BRECO®fix
Range
Tension plate BRECO®fix
