25AT5Variant A Type 2 Plaques de tensions

Tension plate BRECO®fix

Accueil | Belts, Pulleys, Accessories | Accessories | Plaques de tensions |
25AT5Variant A Type 2

25AT5Variant A Type 2

50T10Variant A Type 2

32AT5Variant A Type 2

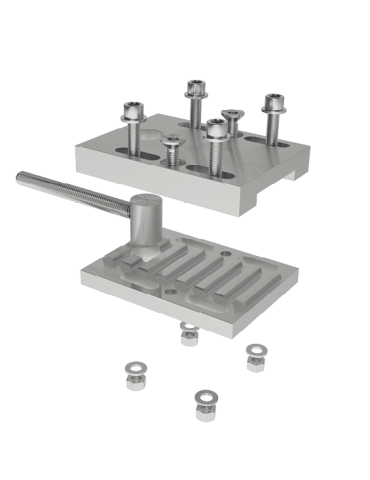

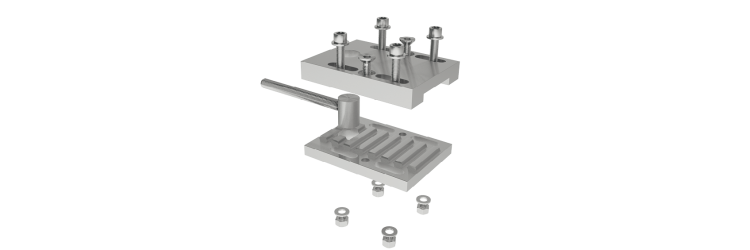

Tension plate BRECO®fix

Write your review

The BRECO®fix tensioners enable the user to establish the pre-tension and secure the ends of a BRECO® linear belt on a linear drive. They have been designed to take into account the breaking load of the belt.

Download the 3D file

Download PDF

Grayed out functions require you to be logged in to your account

Tension plate BRECO®fix Technical characteristics Mass and dimensions Installation instructions Other

Range: Tension plate BRECO®fix

Material lower plate: AL2017

Material upper plate: AL7075

Variant: Variant A

Permissible nominal force: 22400

Profile / pitch: AT5

Profile: AT

Pitch: 5

Type: Type 2

Belt width B: 25

Dimension B: 50

Dimension L: 80

Dimension H: 19

Dimension m1: 10,75

Mounting screw: Screws FHC ISO 10642 2xM5 8.8 galvanised (HC6)

Tightening torque of the screw: 10

Mounting screw: Screws CHC ISO 4762 4xM6 8.8 galvanised (HC 5)

Tightening torque of belt lock: 10

Dimension M: 38

Product range: Tension plate BRECO®fix
