100BATK15Variant B Type 2 Plaques de tensions

Tension plate BRECO®fix

Accueil | Belts, Pulleys, Accessories | Accessories | Plaques de tensions |
100BATK15Variant B Type 2

100BATK15Variant B Type 2

75BATK15Variant B Type 2

75T20Variant B Type 2

Tension plate BRECO®fix

Write your review

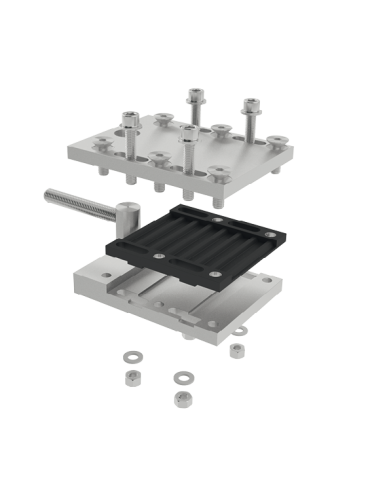

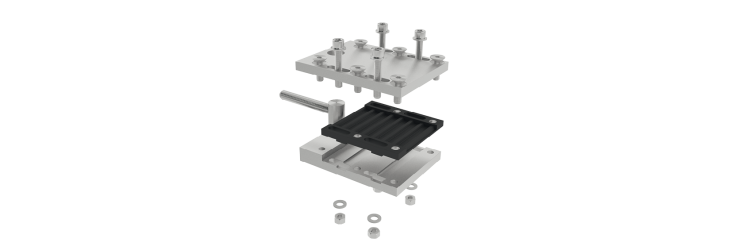

The BRECO®fix tensioners enable the user to establish the pre-tension and secure the ends of a BRECO® linear belt on a linear drive. They have been designed to take into account the breaking load of the belt.

Download the 3D file

Download PDF

Grayed out functions require you to be logged in to your account

Tension plate BRECO®fix Technical characteristics Mass and dimensions Installation instructions Other

Range: Tension plate BRECO®fix

Material lower plate: STEEL S235

Material upper plate: AIHR (7075) / Toothed plate - glass fibre reinforced polyamide

Variant: Variant B

Permissible nominal force: 126200

Profile / pitch: BATK15

Profile: BATK

Pitch: 15

Type: Type 2

Belt width B: 100

Dimension B: 150

Dimension L: 200

Dimension H: 42

Dimension m1: 25,5

Mounting screw: Screws FHC ISO 10642 6xM12 8.8 (HC8)

Tightening torque of the screw: 70

Mounting screw: Screws CHC ISO 4762 4xM12 8.8 (HC 10)

Tightening torque of belt lock: 114 in the FHC screw

Dimension M: 124

Dimension h: 24,58

Dimension A: 72

Dimension C: 35

Product range: Tension plate BRECO®fix
