BINDER access 9 HTD 5M

BINDER access 9 HTD 5M


CONTI® synchrobelt belt

Power belts
Grayed out functions require you to be logged in to your account
login to my account
Range
BINDERaccess
Product range power belts
CONTI® synchrobelt belt
Applications
Simple application

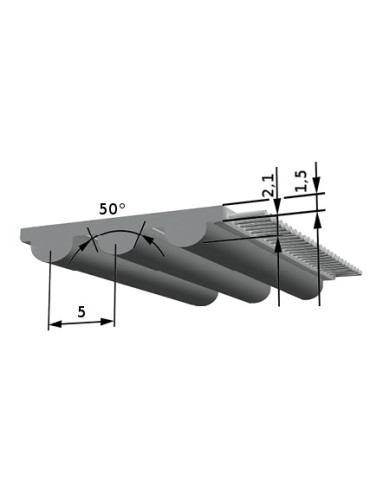

Profile / Pitch
HTD 5
Profile
HTD
Pitch
5
PU Material steel tension member
PCP
Temperature range of steel tension member belt
-20 à 100 °C
Fiberglass frame permissible force FN
120 N
Minimum length
225 - 2525 mm
Standard belt lengths
800, 1000, 1200, 2000, 200, 225, 265, 275, 285, 295, 300, 330, 350, 375, 385, 400, 405, 425, 450, 460, 475, 500, 525, 535, 550, 565, 600, 615, 620, 630, 635, 665, 700, 710, 740, 755, 835, 840, 860, 890, 900, 925, 950, 1050, 1125, 1270, 1420, 1500, 1595, 1
Belt width
9 mm
Weight
0,03 kg/m
Number of teeth
80, 90, 100, 120, 140, 160, 180, 200, 300, 400, 85, 190, 40, 45, 53, 55, 57, 59, 60, 66, 70, 75, 77, 81, 92, 95, 105, 107, 110, 113, 123, 124, 126, 127, 133, 142, 148, 151, 167, 168, 172, 178, 185, 210, 225, 240, 254, 284, 319, 338
