BINDER access 20 HTD 8M Power belts

CONTI® synchrobelt belt

Accueil  |  Belts, Pulleys, Accessories  |  Belts  |  Power belts  |
BINDER access 20 HTD 8M
BINDER access 20 HTD 8M
BINDER access 20 HTD 8M

BINDER access 20 HTD 8M


CONTI® synchrobelt belt

BINDER access 20 HTD 8M: this timing belt is suitable for lower and medium power ranges.
Power belts
Download the 3D file
Download PDF
Grayed out functions require you to be logged in to your account
login to my account
Range
BINDERaccess
Product range power belts
CONTI® synchrobelt belt
Applications
Simple application

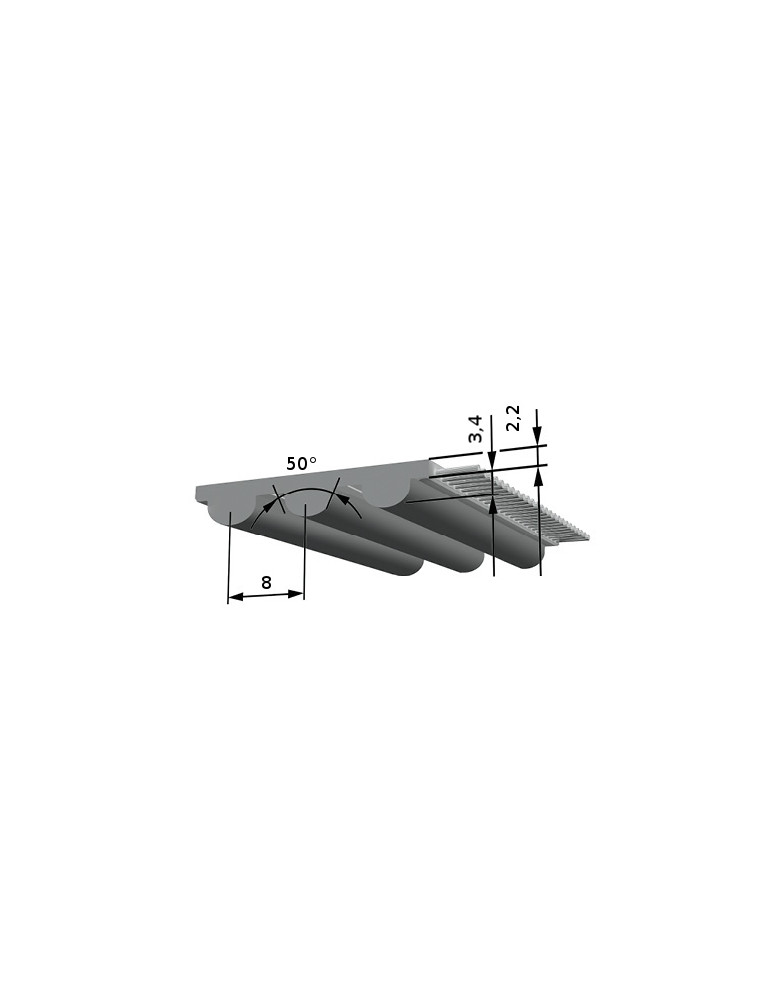

Profile / Pitch
HTD 8
Profile
HTD
Pitch
8
PU Material steel tension member
PCP
Temperature range of steel tension member belt
-20 à 100 °C
Minimum length
288 - 4400 mm
Standard belt lengths
640, 720, 800, 920, 960, 1040, 1120, 1200, 1280, 1440, 1760, 2000, 2400, 2800, 600, 288, 304, 352, 376, 416, 424, 472, 480, 560, 624, 656, 776, 784, 880, 912, 992, 1008, 1160, 1304, 1328, 1360, 1424, 1520, 160, 1800, 2248, 3008, 3408, 3808 mm
Belt width
20 mm
Weight
0,114 kg/m
Number of teeth
80, 90, 100, 115, 120, 130, 140, 150, 160, 180, 200, 220, 250, 300, 170, 190, 53, 59, 60, 70, 75, 110, 124, 126, 178, 225, 36, 38, 44, 47, 52, 78, 82, 97, 98, 114, 145, 163, 166, 281, 350, 376, 426, 476
Fiberglass frame permissible force FN
550 N
Product range
CONTI® synchrobelt belt
Additional information
Polyamide canvas
