BINDER custom 20 HTD 8M CXP

BINDER custom 20 HTD 8M CXP


CONTI® synchroforce belt

Power belts
Download the 3D file
Download PDF
Grayed out functions require you to be logged in to your account
login to my account
Range
BINDERcustom
Product range power belts
CONTI® synchroforce belt
Applications
Precision application

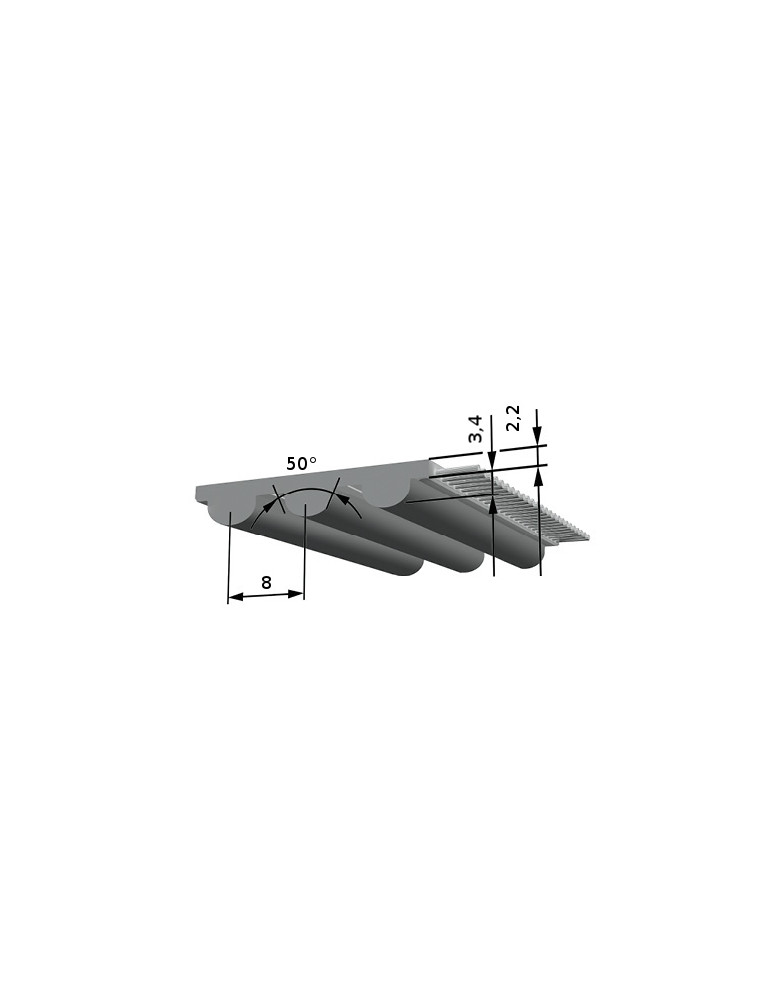

Profile / Pitch
HTD 8
Profile
HTD
Pitch
8
PU Material steel tension member
PCP
Temperature range of steel tension member belt
-20 à 100 °C
Minimum length
288 - 3808 mm
Standard belt lengths
640, 720, 800, 920, 960, 1040, 1120, 1200, 1280, 1440, 1760, 2000, 2400, 2800, 600, 288, 304, 352, 376, 416, 424, 472, 480, 560, 624, 656, 776, 784, 880, 912, 992, 1008, 1160, 1304, 1328, 1360, 1424, 1520, 160, 1800, 2248, 3008, 3408, 3808 mm
Belt width
20 mm
Weight
0,114 kg/m
Number of teeth
80, 90, 100, 115, 120, 130, 140, 150, 160, 180, 200, 220, 250, 300, 170, 190, 53, 59, 60, 70, 75, 110, 124, 126, 178, 225, 36, 38, 44, 47, 52, 78, 82, 97, 98, 114, 145, 163, 166, 281, 350, 376, 426, 476
Fiberglass frame permissible force FN
1150 N
Product range
CONTI® synchroforce belt
Additional information
Polyamide canvas
