BINDER custom 30 DHTD 5M CXP

CONTI® Synchrotwin belt

Power belts
Grayed out functions require you to be logged in to your account
login to my account
Range
BINDERcustom
Product range power belts
CONTI® Synchrotwin belt
Applications
Precision application

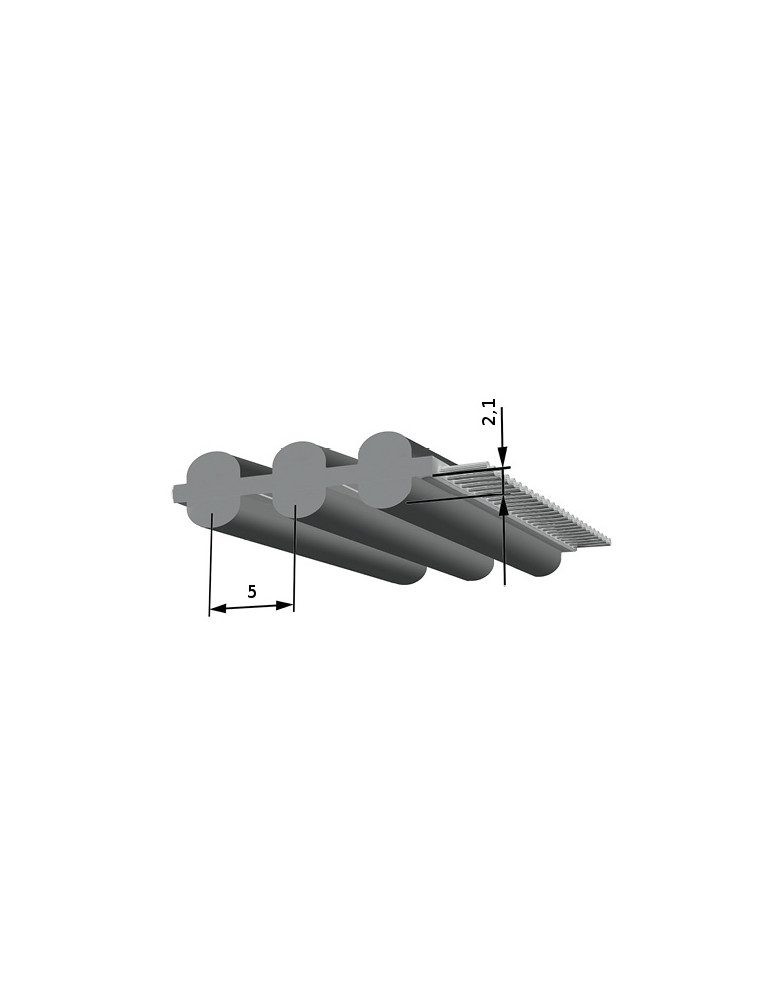

Profile / Pitch
DHTD 5
Profile
DHTD
Pitch
5
Double toothed belt
DL
PU Material steel tension member
PCP
Temperature range of steel tension member belt
-20 à 100 °C
Steel tension member permissible force FN
1000 N
Minimum length
565 - 2000 mm
Standard belt lengths
800, 1000, 1200, 2000, 565, 600, 615, 620, 630, 635, 665, 700, 710, 740, 755, 835, 840, 860, 890, 900, 925, 950, 1050, 1125, 1270, 1420, 1500, 1595, 1690 mm
Belt width
30 mm
Weight
0,102 kg/m
Number of teeth
120, 140, 160, 180, 200, 300, 190, 113, 123, 124, 126, 127, 133, 142, 148, 151, 167, 168, 172, 178, 185, 210, 225, 240, 254, 284, 319, 338, 406
