BINDER premium 36 CTD C8M CARBON

BINDER premium 36 CTD C8M CARBON


CONTI® synchrochain carbon belt

Power belts
Download PDF
Grayed out functions require you to be logged in to your account
login to my account
Range
BINDERpremium
Product range power belts
CONTI® synchrochain carbon belt
Applications
High power application

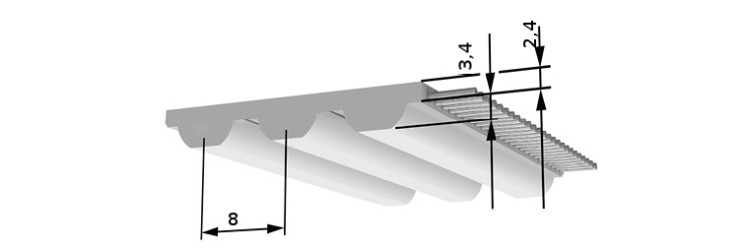

Profile / Pitch
CTD C8
Profile
CTD
Pitch
8
PU Material steel tension member
DNSU 9590
Shore hardness steel tension member belt
95 ShA
Temperature range of steel tension member belt
-55 à 100 °C
Minimum length
640 - 4480 mm
Standard belt lengths
640, 720, 800, 896, 920, 960, 1000, 1040, 1120, 1200, 1224, 1280, 1440, 1600, 1760, 1792, 2000, 2200, 2400, 2520, 2600, 2800, 2840, 3200, 3600, 4000, 4480 mm
Belt width
36 mm
Weight
0,162 kg/m
Number of teeth
80, 90, 100, 112, 115, 120, 125, 130, 140, 150, 153, 160, 180, 200, 220, 224, 250, 275, 300, 315, 325, 350, 355, 400, 450, 500, 560
Steel tension member permissible force FN
7200 N
Z min single bending standard cable
22
Ø min Flexion simple câble standard
170 mm
